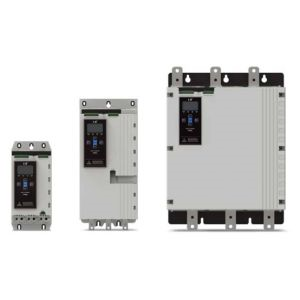

18.5 kW 34A FLC Standard Economic-Type 380 - 690 Vac Supply 24V Control Bypass Keypad
SKU: SSMe-0042B-V7-C2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A soft starter is a practical and affordable way to ensure the motor runs steadily.
With LS's extensive experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Main voltage: 380~690VAC (± 10%).
Control voltage: 24VAC/VDC (±20%), 2.8A.
Main frequency: 50~60Hz (±5Hz).
Rated insulation voltage to earth: 600VAC.
Rated impulse withstand voltage: 6KV.
From designation: Bypassed or continuous, semiconductor motor starter form 1.
Short circuit capability: coordination with semiconductor fuses (Type 2), Coordination with HRC fuses (Type 1).
EMC immunity: IEC 60947-4-2.
EMC emissions: NIEC 60947-4-2 class B.
Input Rating: Active 24 VDC, 8mA approximately.
Relay outputs: 10A at 250VAC Resistive, 5A at 250VAC AC15 pf 0.3.
Relay output: Changeover.
Features:
Easy Operation and Control.
Motor Protection.
Built-in bypass.
Compact Design, Easy to integrate.
Timed Voltage Ramp System.
Convenient Status and Trip Check with LED Indicator.
