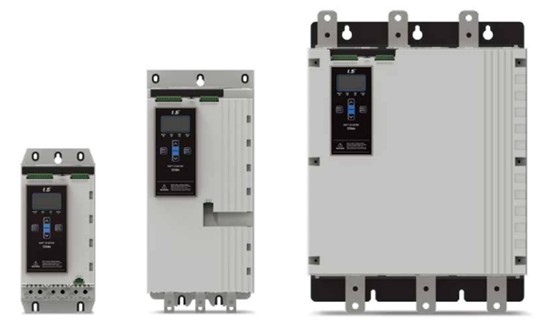

22 kW 42A FLC Standard Economic-Type 200 - 525 Vac Supply 110 - 440 Vac

Specifications: Power (kW): 22 Supply voltage (VAC): 180~577.5. Supply voltage frequency (Hz): 45 to 66 Output current (A): 52 Operating temperature (°C): -10 to 60 IP protection level: 20 3-phase Economic Digital Control 52A FLC Built-in Bypass Contactor Input Voltage 200 ~ 525V AC  Control Voltage 110 ~ 120 and 220 ~ 240V AC  Analog Settings Without Motor Protection Binary inputs: 4 Relay outputs: 3. Analog outputs: 1 Analog output current (mA): 4 to 20 Depth (mm): 231 Width (mm): 152 Height (mm): 307 SSM Series: Zero Harmonics on Smart Cards System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios. Both still have the greatest capacity for protection and control. Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components. It is more effective to use a soft starter rather than a VFD when operating at a fixed speed. Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass. Graphical Display Simple commissioning through fast application setup Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual. Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic. Simulation Mode: No need to connect the main power supply and motor; easy and fast testing during installation and commissioning.
