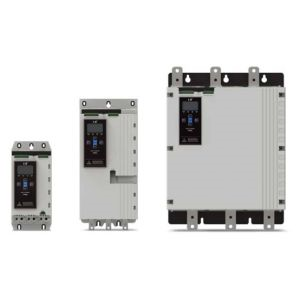

22 kW 42A FLC Standard Economic-Type 380 - 690 Vac Supply 24V Control Bypass Keypad
SKU: SSMe-0052B-V7-C2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Zero Harmonics on Smart Cards.
System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios.
Both still have the greatest capacity for protection and control.
Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components.
It is more effective to use a soft starter rather than a VFD when operating at a fixed speed.
Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass.
Graphical Display .
Simple commissioning through fast application setup.
Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual.
Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Main voltage: 380~690VAC (± 10%).
Control voltage: 24VAC/VDC (±20%), 2.8A.
Main frequency: 50~60Hz (±5Hz).
Rated insulation voltage to earth: 600VAC.
Rated impulse withstand voltage: 6KV.
From designation: Bypassed or continuous, semiconductor motor starter form 1.
Short circuit capability: coordination with semiconductor fuses (Type 2), Coordination with HRC fuses (Type 1).
EMC immunity: IEC 60947-4-2.
EMC emissions: NIEC 60947-4-2 class B.
Input Rating: Active 24 VDC, 8mA approximately.
Relay outputs: 10A at 250VAC Resistive, 5A at 250VAC AC15 pf 0.3.
Features:
Easy Operation and Control
Motor Protection
Built-in bypass
Compact Design, Easy to integrate.
Timed Voltage Ramp System
Convenient Status and Trip Check with LED Indicator
