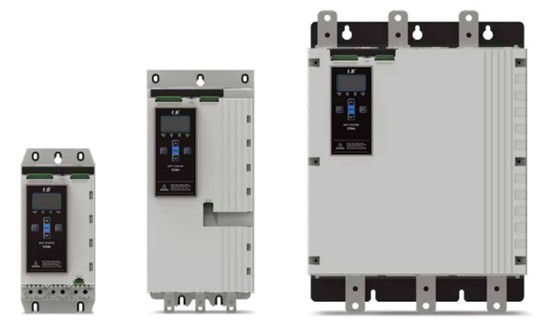

220 kW 410A FLC Standard Economic-Type 200 - 525 Vac Supply 24V Control Bypass

Specifications: 220kW Soft Starter Binary inputs: 4 Relay outputs: 3. Analog outputs: 1 Analog output current (mA): 4 to 20 Depth (mm): 243 Width (mm): 216 Height (mm): 450 Supply voltage (VAC): 180 to 577.5 3-phase Supply voltage frequency (Hz): 45 to 66 Output current (A): 410 Operating temperature (°C): -10 to 60 IP protection level: 20 Economic Digital Control 410A FLC Built-in Bypass Contactor Input Voltage 200 ~ 525V AC Control Voltage 24V AC/DC Analog Settings Without Motor Protection SSM Series: Zero Harmonics on Smart Cards System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios. Both still have the greatest capacity for protection and control. Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components. It is more effective to use a soft starter rather than a VFD when operating at a fixed speed. Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass. Graphical Display Simple commissioning through fast application setup Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual. Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic. Simulation Mode: No need to connect the main power supply and motor; easy and fast testing during installation and commissioning.
