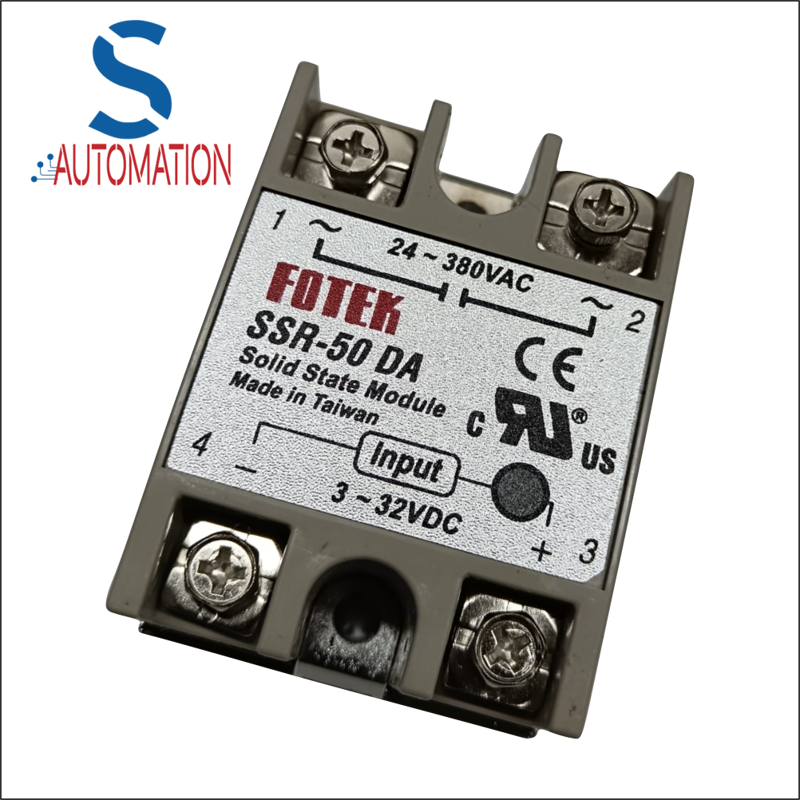

FOTEK SSR-50DA Solid State Relay 50A 24-380VAC With Cover
SKU: SSR-0002-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description
A Solid-State Relay (SSR) is an electronic switching device that uses semiconductor components to perform the switching function, rather than mechanical contacts like traditional relays. SSRs provide fast, reliable switching with no moving parts, resulting in higher durability and reduced wear. They are used in various applications, such as controlling motors, lights, and heating elements, offering benefits like silent operation, faster response times, and resistance to shock and vibration. SSRs are ideal for environments where traditional relays may fail due to mechanical wear or environmental factors.
Buy currently uses Select Automation shop pricing and checkout.
Specification
Control Input Voltage: 3-32V DC
Output Voltage: 24-380V AC
Maximum Load Current: 50A
Input Trigger Current: 3-5mA
Control Input Current: 3-32V DC
Leakage Current: < 5mA (when OFF)
Turn-On Time: < 1ms
Turn-Off Time: < 1ms
Insulation Resistance: ≥ 1000MΩ at 500V DC
Dielectric Strength: 2500V AC for 1 minute
Ambient Temperature: -30°C to +80°C
Storage Temperature: -40°C to +100°C
Length: ~63 mm
Width: ~45 mm
Height: ~23 mm (with plastic cover)
