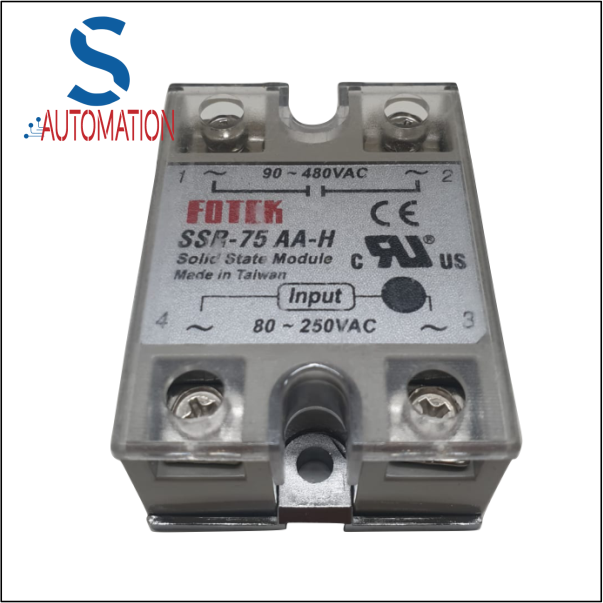

      FOTEK SSR-75AA-H Solid State Relay 75A 90-480VAC With Cover

      SKU: SSR-0009-00

      Sold by Select Automation

      Final price R 528.59
      R 459.64 excl. VAT

      Availability: In Stock (5 on hand)

      Short Description
        Description: A Solid-State Relay (SSR) is an electronic switching device that uses semiconductor components to perform the switching function, rather than mechanical contacts like traditional relays. SSRs provide fast, reliable switching with no moving parts, resulting in higher durability and reduced wear. They are used in various applications, such as controlling motors, lights, and heating elements, offering benefits like silent operation, faster response times, and resistance to shock and vibration. SSRs are ideal for environments where traditional relays may fail due to mechanical wear or environmental factors.
      SSR-0009-00
      Alternative image 1
        Specifications: Control Input Voltage: 80-250V AC Output Voltage: 24-380V AC Maximum Load Current: 75A Leakage Current: < 2mA (when OFF) Turn-On Time: ≤ 10ms Turn-Off Time: ≤ 10ms Insulation Resistance: ≥ 500MΩ at 500V DC Dielectric Strength: 2500V AC for 1 minute Ambient Operating Temperature: -30°C to +75°C Storage Temperature: -30°C to +100°C Mounting Type: Panel mount Length: ~63 mm Width: ~45 mm Height (with cover): ~23 mm
