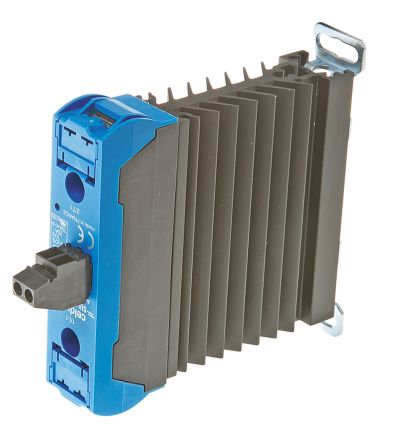

25A 12-275VAC SS RELAY+HEATSINK IP20
SKU: SUL842070
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
SUL8 series - Solid state relays (SSR):
Every Celduc SSR (solid state relay) has a very long lifespan and is equipped with back-to-back thyristors and 4th generation TMS technology.
General features:
Compact, dependable, and reasonably priced (22.5 mm pitch SSR solution).
Mounting arrangement that works with all common hockey puck-style relays.
Input protection against overvoltage (transil).
Removable IP20 terminal protection cover.
LED status indicator for control.
Buy currently uses Select Automation shop pricing and checkout.
Complete "ready for use" SSR + heat sink combination:
8 range - for most load types - lamps and infrared
SERIES: SUL8
SWITCHING CURRENT: 25A
SWITCHING VOLTAGE: 12 - 275 VAC
PEAK VOLTAGE: 600V
CONTROL VOLTAGE: 3 - 32 VDC
DESCRIPTION: Complete solid state relay + heat sink combination
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 90 x (W) 22.5 x (D) 112
