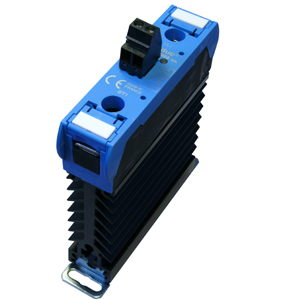

25A 12-275VAC SS RELAY+HEATSINK
SKU: SUL842970
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
SUL8 series - Solid state relays (SSR):
With an extremely long lifespan and back-to-back thyristors, all Celduc SSRs (solid state relays) use 4th generation TMS technology.
General features:
Economical, dependable, and small solution (22.5 mm pitch SSR solution).
All common hockey puck-style relays are compatible with this mounting configuration.
Input overvoltage protection (transil).
Removal of the IP20 terminal protective cover is possible.
LED indication of control status.
Buy currently uses Select Automation shop pricing and checkout.
Complete "ready for use" SSR + heat sink combination:
8 range - for most load types - lamps and infrared
SERIES: SUL8
SWITCHING CURRENT: 25A
SWITCHING VOLTAGE: 12 - 275 VAC
PEAK VOLTAGE: 600V
CONTROL VOLTAGE: 180 - 240 VAC
DESCRIPTION: Complete solid state relay + heat sink combination
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 90 x (W) 22.5 x (D) 112
