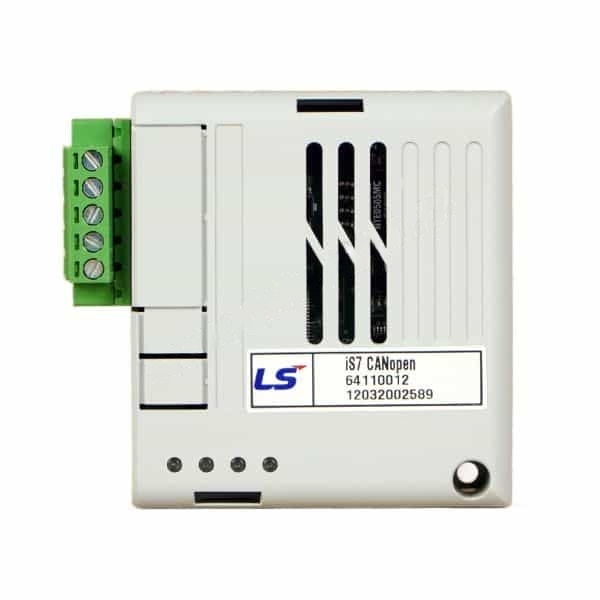

CanOpen Communication Card Bus Topology
SKU: SV-IS7-Can Open
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The CIA (Controller Area Network) Association's CAN (Controller Area Network) is used by the Fieldbus CAN Open.
At the moment, machine control, medical equipment, automobiles, and building automation all use the CAN open.
Any master module or PLC sequence program can monitor and control inverters.
One communication line can connect multiple inverters, which reduces installation costs.
Faster and easier installation and maintenance are made possible by simple, clean wiring.
Inverters can be controlled by a range of PLC peripheral devices.
PCs and other systems can be connected to automate plants.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
1Mbps communication speed.
Bus Topology.
Max. 64 node connection points (include master).
PDO SDO Sync NMC communication support.
Support profile: PDO1 (CiA402 drive & motion control device profile) PDO3 (LS Profile).
Device Type: AC Drive.
Terminal Resistance: 120 ohm 1/2W Lead Type.
iS7 Series:
With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more potent performance.
Focusing on an intuitive user interface and environmentally friendly features, the iS7 has a broad graphic LCD keypad with support for both user and macro groups, as well as an electro-thermal function for motor protection and input/output phase loss protection.
A speed-precision-driven vector algorithm and a competitive and powerful low-speed torque control are features of iS7 technology.
100:1 speed control range.
Very low torque control capability: actual torque of 150% at 0.1 Hz.
Maximum torque control capacity inside the range of restoration.
