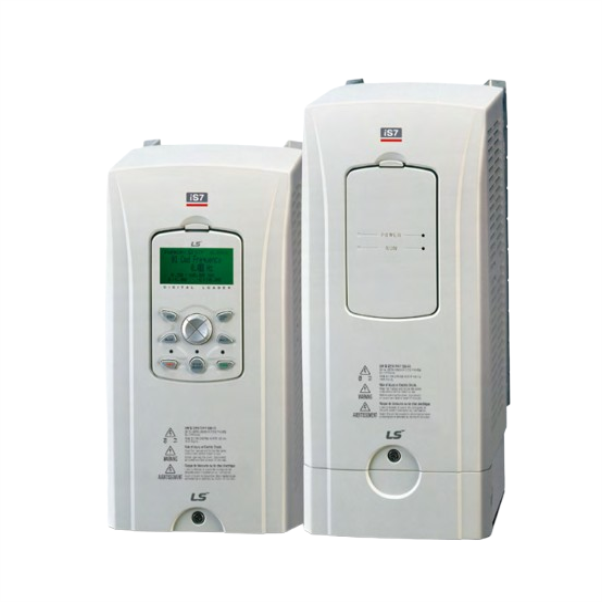

4kW 3-Ph 380VAC Heavy Duty DBU RS-485
SKU: SV0037IS7-4NO
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
iS7 Series:
With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more powerful performance.
The iS7 places a strong emphasis on its user-friendly interface and environmentally friendly features, which include support for macro groups and wide graphic LCD keypad users, as well as electro-thermal motor protection and input/output phase loss protection.
A speed-precision-driven vector algorithm and competitive and effective low-speed torque control are features of iS7 technology.
Range of speed control: 100:1.
Very low torque control capability: actual torque of 150% at 0.1 Hz.
Maximum torque is controllable within the range of restoration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 3 Phase 380VAC.
Output Type: Analogue DC 0~10V.
Output Type: Analogue DC 4~20mA.
Output Type: Digital Programmable Relay (NO).
Output Type: Digital Programmable Relay (NO/NC).
Output Type: Digital Programmable Transistor.
Other Feature: Thermistor Input.
Display Type: LCD.
Input Type: 8 Pieces Prog. PNP/NPN.
Input Type: Analogue DC ±10V.
Input Type: Analogue DC 4~20mA /0~20mA.
Strength: 3.7 kW.
Input Phase: 3.
Amps (Constant Torque Rating): 8 A.
Amps (Variable Torque Rating): 12 A.
Mounting: DIN rail mounting.
Input Range Voltage (AC): 380-480 VAC.
