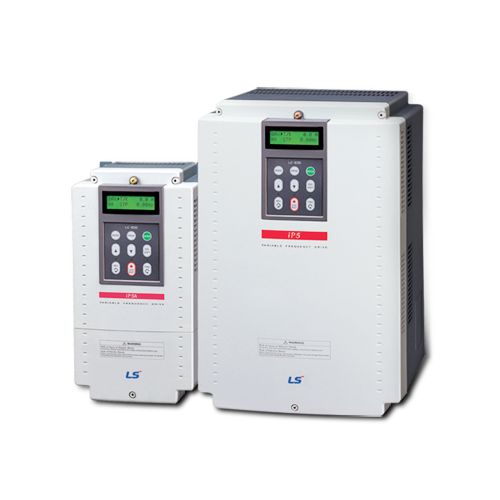

37kW 3-Phase 525 - 600VAC HVAC Drive Pump and Fan Applications
SKU: SV0370iP5A-6O
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
iP5A Series:
The iP5A offers dependable and reasonably priced system performance and was created especially for HVAC applications.
PID Control.
It has a dual PID.
Control of Multiple Motors (0.75~450kW).
Sleep and wake-up functions.
Function of Pre-Heating.
Flying Start Function.
Automated Conservation of Energy.
The iP5A maximizes motor performance despite external voltage variations and lightning surges.
Improved system management during power dips and outages.
Safety Stop.
Current Algorithm for Reducing Leakage.
Flux Braking Algorithm.
Changes the carrier frequency automatically.
All components are easily accessible, and maintenance is made simple by the design of the iP5A.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Current: iP5A.
Input voltage: 3-phase 380 ~ 480V (-15% ~ +10%).
Output voltage: 3-phase 380 ~ 480V.
Input frequency: 50 ~ 60Hz (±5%).
Output frequency: 0.01 ~ 120Hz.
Rated power (110% overload): 37 kW/50hp.
Rated power (150% overload): 30 kW/40hp.
Output power: 59.8 kVA.
Current Rated current (110% Overload): 75 A.
Rated current (150% Overload): 61 A.
Control method: V/f, slip compensation, sensor less vector.
Overload capacity: 110 % in 1 minute, 120% in 1 minute.
Load: No load.
DCR: DC reactor.
UL certification: Enclosed type 1.
Certification: DNV.
Enclosure: IP20/UL.
Weight: 27 kg (No DCR), 39 kg (Integrated DCR).
INVERTER DRIVE.
SENSORLESS VECTOR & V/HZ CONTROL.
MULTI-MOTOR CONTROL.
FLYING START.
PRE-HEATING FUNCTION.
AUTOMATIC ENERGY SAVINGS (FLUX OPTIMIZATION).
