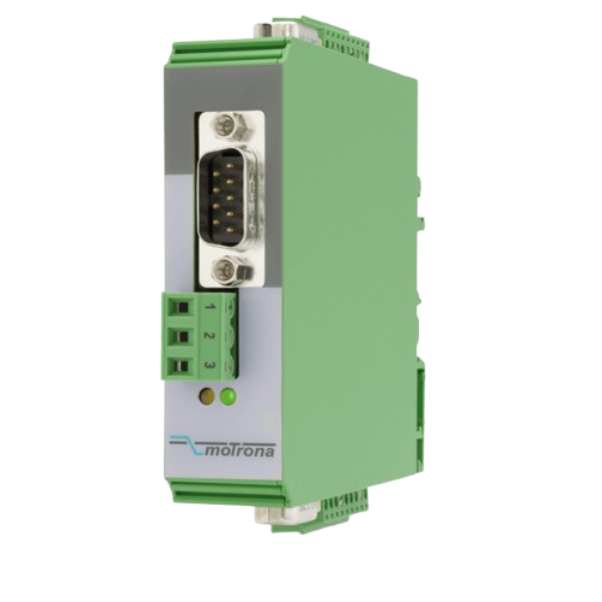

Sine-Cosine Signal Splitter with 2 SinCos- and 2 Incremental Outputs SV210
SKU: SV210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The purpose of the Motrona SV210 Signal Converter is to transform sine-cosine signals from measurement devices and encoders into incremental signals.
Its two SinCos outputs and two incremental outputs (HTL or TTL / RS422) enable the control of linked devices using incremental pulses or SinCos signals.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Encoder Input: SIN+, SIN-, COS+, COS-, REF+ (Reference Pulse), REF- [1 Vss].
Maximum Input Frequency: 500 kHz with a maximum conversion time of 200 ns.
SinCos Outputs: Two outputs with the same SIN+, SIN-, COS+, COS-, REF+, REF- format.
Incremental Outputs: Two outputs with format A, /A, B, /B, Z, /Z (RS422, TTL, HTL).
Power Supply: 17 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
Auxiliary Output: 5 V for encoder supply.
