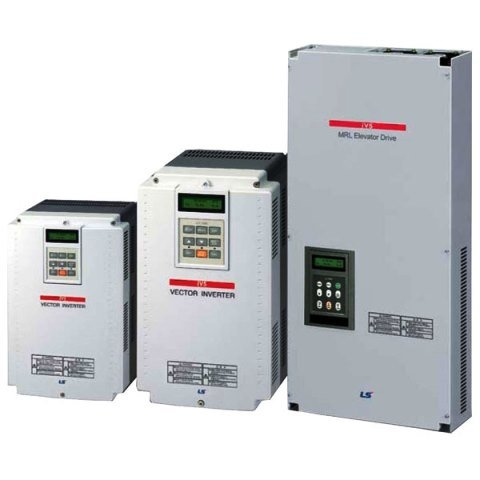

22kW MRL 380-460VAC 3 Phase Built-in Dynamic braking unit
SKU: SV220IV5-4DB MRL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
iV5 Series:
The series achieves excellent control stability in the crane continuous line and elevator system controls due to its very precise speed control and high-precision vector control across the whole operating area.
Accurate torque and speed control Precise management using the SIN/COS encoder PM Control without sensors Autotuning (when stationary) Process/Droop/Draw PID Control of the brakes.
With its user-friendly keypad and detachable terminal blocks, it is simple to use.
Numerous communication protocols, including Profibus-DP CC-Link, Device Net Profibus-RTU, and LS485 Modbus-RTU.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power: 22 kW.
Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%).
Voltage Output: 3 phase 380 - 480V.
Rated Output Current: 45 A.
Overload capacity: 150% / 1 minute.
Output Frequency: 0 – 400 Hz.
Operating temperature: -10 °C to +40 °.
Protection class: IP20.
0~3600rpm.
Built-in Dynamic braking transistor.
Encoder (PG) Feedback for 5/12/15V.
Specifications of iV5 MRL Series:
The maximum allowable capacity is marked when using a standard 4-pole motor. (200V Class is based on 220V and 400V Class on 440V.)
The rated capacity (=√3*V*I) is 220V for 200V Class and 440V for 400V Class.
Output Rated Voltage (V): 380~480V. The maximum output voltage does not exceed the source voltage.
Input Rated Voltage (V): 3ؘ 380~480V (-10%~+10%). When the input voltage is 507~528V 10% derating of the rated current should be performed.
When the input voltage is 680VDC or above 10% derating of the rated current should be performed.
