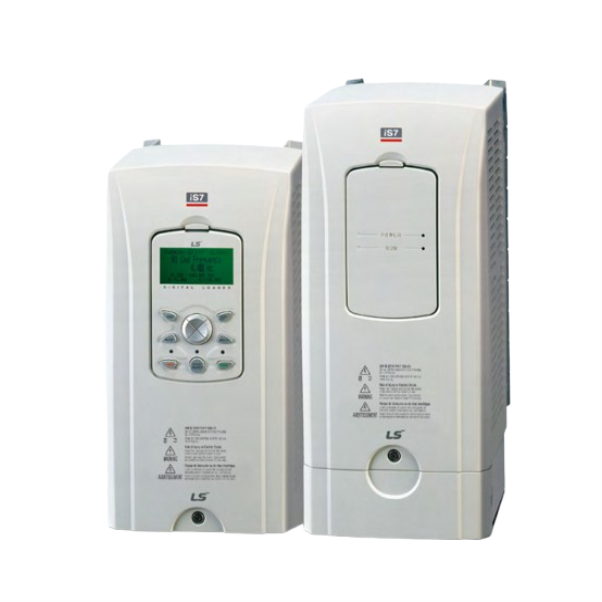

315kW AC400V 3 Phase Heavy-Duty Built-in keypad RS485 No Reactor or Filter
SKU: SV3150IS7-4SO
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
iS7 Series:
With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more effective performance.
The iS7 places a strong emphasis on its user-friendly interface and environmentally friendly features, which include support for macro groups and wide graphic LCD keypad users, as well as electro-thermal motor protection and input/output phase loss protection.
A speed-precision-driven vector algorithm and a competitive and strong low-speed torque control are features of iS7 technology.
Range of speed control: 100:1.
Very low torque control capability: actual torque of 150% at 0.1 Hz.
Maximum torque control capacity inside the range of restoration
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 3 Phase 380VAC.
Output Type: Analogue DC 0~10V.
Output Type: Analogue DC 4~20mA.
Output Type: Digital Programmable Relay (NO).
Output Type: Digital Programmable Relay (NO/NC).
Output Type: Digital Programmable Transistor.
Other Feature: Thermistor Input.
Display Type: LCD.
Input Type: 8 Pieces Prog. PNP/NPN.
Input Type: Analogue DC ±10V.
Input Type: Analogue DC 4~20mA /0~20mA.
Strength: 315 kW.
Power: normal duty: 375 kW; heavy duty: 315 kW.
Voltage Input: 3 phase 380 - 480V at (-15% to +10%) 50 - 60 Hz (±5%)..
Voltage Output: 3 phase 380 - 480V.
Rated Output Current: 731 A normal duty / 613 A heavy duty.
Overload capacity: 150% / 1 minute; 200% for 2 seconds at High Overload rating.
Output Frequency: 0 – 400 Hz.
Operating temperature: -10 °C to +40 °.
Protection class: IP20.
