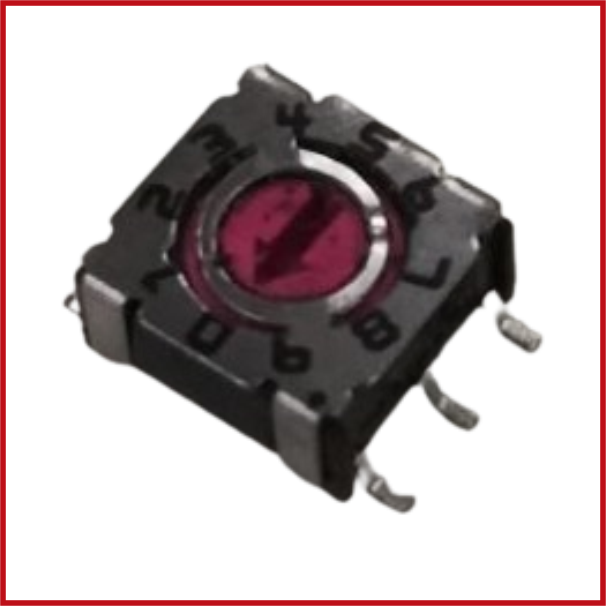

10 Way Surface Mount DIP Switch, Rotary Flush Actuator
SKU: SWI-0014-H10
Sold by Select Automation
Final price R 142.55
R 123.96 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A 10-Way Surface Mount DIP Switch with a rotating flush actuator is a compact and dependable switch used in a variety of electronic applications to manually control several circuits or settings.
The rotary flush actuator provides for simple and accurate adjustments.
Manual Configuration: The rotary actuator allows users to manually configure various settings or operational modes.
Compact Design: The surface mount design is ideal for applications where space is limited.
Durability: The rotary flush actuator delivers dependable, long-lasting performance.
Versatility: It can be used for a range of tasks, including setting device modes and configuring hardware addresses.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of Positions: 10.
Mounting Type: Surface Mount (SMD).
Actuator Type: Rotary, flush with housing.
Contact Material: Gold over nickel-plated stainless steel.
Package Style: DIP.
Pin Spacing: 2.54 mm between pins, 5.08 mm between rows.
Switching Mode: Manual rotary selection.
Type: Rotary DIP switch.
Actuator Style: Flush rotary (low-profile knob).
Contact Rating: 100 mA @ 50 VDC.
Contact Resistance: ≤ 200 mΩ.
Insulation Resistance: ≥ 100 MΩ @ 500 VDC.
Dielectric Strength: 500 VAC for 1 minute.
Switching Life: ≥ 10,000 cycles.
Operating Temperature: -25°C to +85°C.
Housing Material: Thermoplastic.
