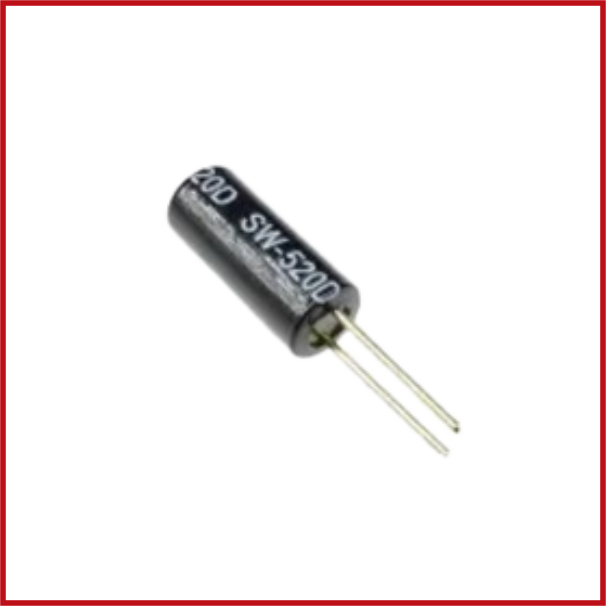

SW520D Ball Switch
SKU: SWI-0025-H10
Sold by Select Automation
Final price R 20.42
R 17.76 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SW-520D is a small ball-type vibration and tilt switch that detects movement, vibration, and changes in orientation.
Its basic mechanical architecture makes it ideal for low-current sensing and triggering in electrical projects, alarms, and control circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications
Product Type: Ball Tilt / Vibration Switch.
Switch Type: Single-Direction Roller Ball Switch.
Maximum Voltage: 12V DC.
Maximum Current: 20–30Ma.
Contact Resistance: <10Ω.
Insulation Resistance: >10MΩ.
Capacitance: 5pF.
Operating Temperature: -40°C to +75°C.
Tilt/Trigger Angle: 10° to 45°.
Body Diameter: 5.2mm.
Body Length: 11.5mm.
Lead Length: 11mm.
Service Life: Up to 100,000 cycles.
Protection: Sealed, dustproof and waterproof.
Applications: Tilt detection, vibration sensing, alarms, toys, appliances, cameras, orientation sensing and low-current electronic circuits.
