Finger Push Micro Switch (Green)
SKU: SWI-0029-H10
Sold by Select Automation
Final price R 34.21
R 29.75 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

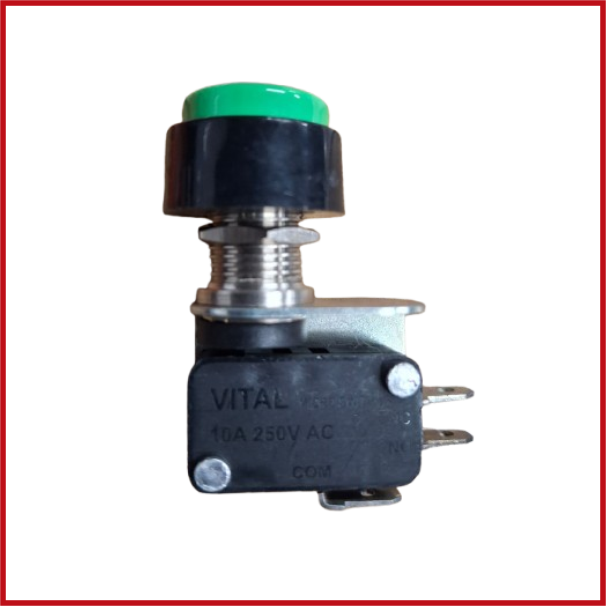

The Finger Push Micro Switch (Green) is a small panel-mounted switch that allows for manual control and circuit switching in electrical and electronic devices.
The green push actuator provides a clear and easy-to-use interface, and the snap-action mechanism allows for dependable switching between the common, normally open, and normally closed contacts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Finger Push Micro Switch.
Actuator Colour: Green.
Rated Current: 10A.
Rated Voltage: 250V AC.
Contact Configuration: SPDT.
Terminals: NC, NO and COM.
Operation: Momentary push-button / snap-action switching.
Moulded Material: PA66.
Operating Temperature: -20°C to +80°C.
Mechanical Endurance: Up to 1,000,000 cycles.
Contact Resistance: <20Mω.
Dielectric Strength: >2kV.
Insulation Resistance: 2000MΩ at 500V DC.
Mounting: Panel mount with threaded metal bushing and retaining nut.
Application: Control panels, machinery, equipment, appliances and general electrical switching applications.
