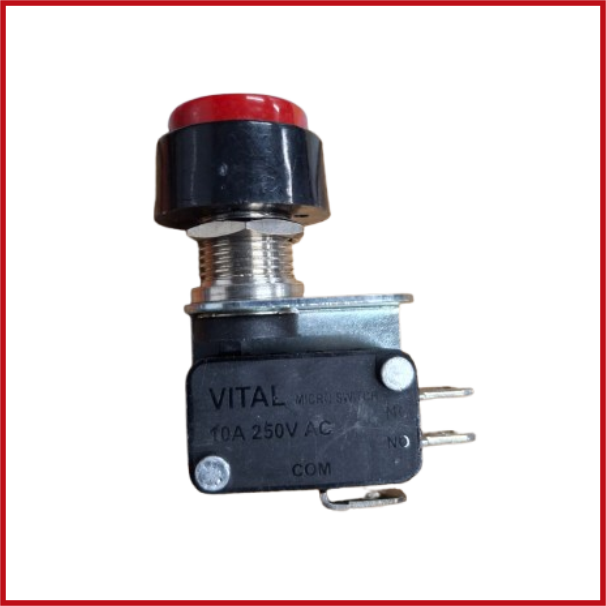

Finger Push Micro Switch (RED)
SKU: SWI-0030-H10
Sold by Select Automation
Final price R 34.21
R 29.75 excl. VAT
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Finger Push Micro Switch (Red) is a small panel-mounted switch intended for manual control and circuit switching in electrical and electronic devices.
The red push actuator provides easy visual identification, while the snap-action mechanism ensures consistent switching between the common, normally open, and normally closed contacts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Finger Push Micro Switch.
Actuator Colour: Red.
Rated Current: 10A.
Rated Voltage: 250V AC.
Contact Configuration: SPDT.
Terminals: COM, NO and NC.
Operation: Momentary push-button / snap-action switching.
Mounting: Panel mount with threaded metal bushing and retaining nut.
Operating Temperature: -20°C to +80°C.
Electrical Endurance: 6,000 cycles.
Contact Resistance: <20Mω.
Insulation Resistance: 2000MΩ at 500V DC.
