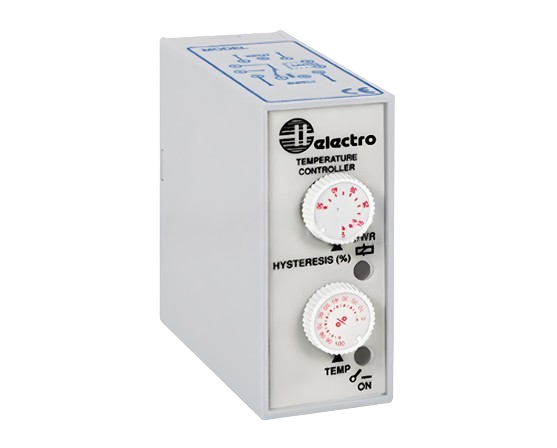

TEMPERATURE CONTROLLER 110VAC.
SKU: T1R-180S110A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Controller of Temperature:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
A conventional three-wire PT100 resistive temperature sensor with two adjustable temperature ranges, or a temperature control unit.
The device features a temperature and hysteresis adjustment, and it may be set for OVER or UNDER temperature.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Features of a fail-safe SPDT output of 10 A.
Powered on and relay activated LEDs.
Adjustable hysteresis setting on a potentiometer.
Temperature adjustment potentiometer.
Straightforward PT100 temperature sensor hookup.
The rear DIP switch has two temperature range selections.
Temperature controller:
CONTACT: 10A SPDT
STANDARD TEMPERATURE: -20°- 80°C
RANGES: 80°-180°C
DIRECT CONNECTION: PT100
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
