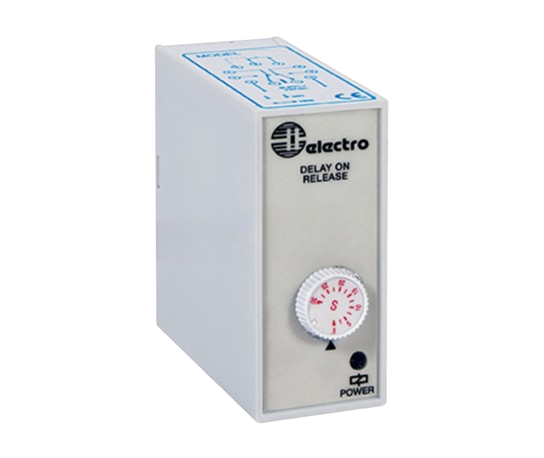

OFF DELAY TIMER, 10 MINUTES, 230VAC.

Delay in removing the supply (true off delay on de-energization timer): Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base. The device offers a delayed relay release upon removal of the supply. Internal batteries are included with time ranges of 10 to 180 minutes; however, they must be charged for 24 hours prior to use. To charge the internal retention circuit, power must be applied for 30% of the time range before being removed. Use the pulse-controlled interval timer (T2M or T1I/P) in applications where supply voltage is present.
