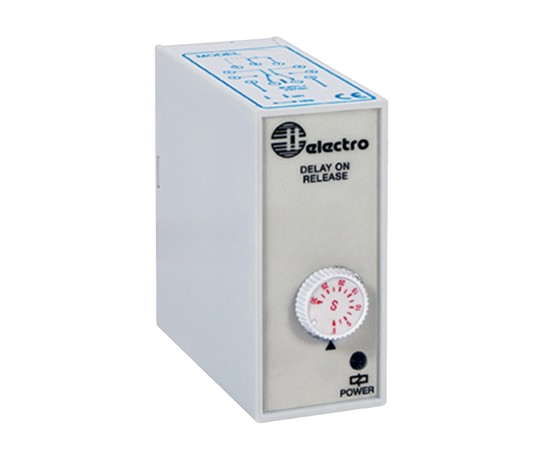

OFF DELAY TIMER, 60 MINUTES, 230VAC.
SKU: T2D-B60M230A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Delay in removing the supply (true off delay on de-energization timer):
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
The device offers a delayed relay release upon removal of the supply.
Internal batteries are included with time ranges of 10 to 180 minutes however, they must be charged for 24 hours prior to use.
To charge the internal retention circuit, power must be applied for 30% of the time range before being removed.
Use the pulse-controlled interval timer (T2M or T1I/P) in applications where supply voltage is present.
Buy currently uses Select Automation shop pricing and checkout.
Features:
DPDT oscillator control time circuit with 5A output.
1% is the repeatable deviation.
LED power supply indicator on.
Time setting adjustable potentiometer.
Time interval with battery: 10–180 minutes.
Range of time without battery: 3 to 360 seconds.
Use PT11/PT13 for pulses less than 30 seconds plus 30%.
Specifications:
TIME RANGE: 10min, 30min, 60min,180min
DESCRIPTION: True off delay on de-energisation timer with battery
CONTACT: 10A SPDT
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
