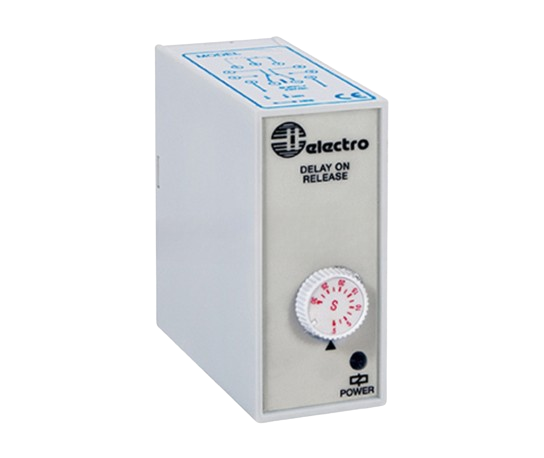

MULTI-RANGE, MULTI-FUNCTION TIMER 48V AC/DC
SKU: T2M048AD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Multiple functions (four times as many) 4-time range multi-range:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Plug-in timers with many functions and a range that cover all frequently used features.
The device will reset if the function or time range is altered using the front-mounted controls.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Recurrence deviation:0.2% Microprocessor-oriented architecture
Range of time: 0.3 seconds to 60 hours.
LEDs for the power supply ON and relay ON.
Four function selections on the rear DIP switch.
Eight timer ranges are selectable via the rear DIP switch.
Specifications:
TIME RANGE: 0.3 second - 60hours
DESCRIPTION: multi-function, multi-range electronic timer
CONTACT: 10A DPDT
FUNCTION: On-delay/ Interval/ Equal repeat/ Interval (pulse controlled)
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
