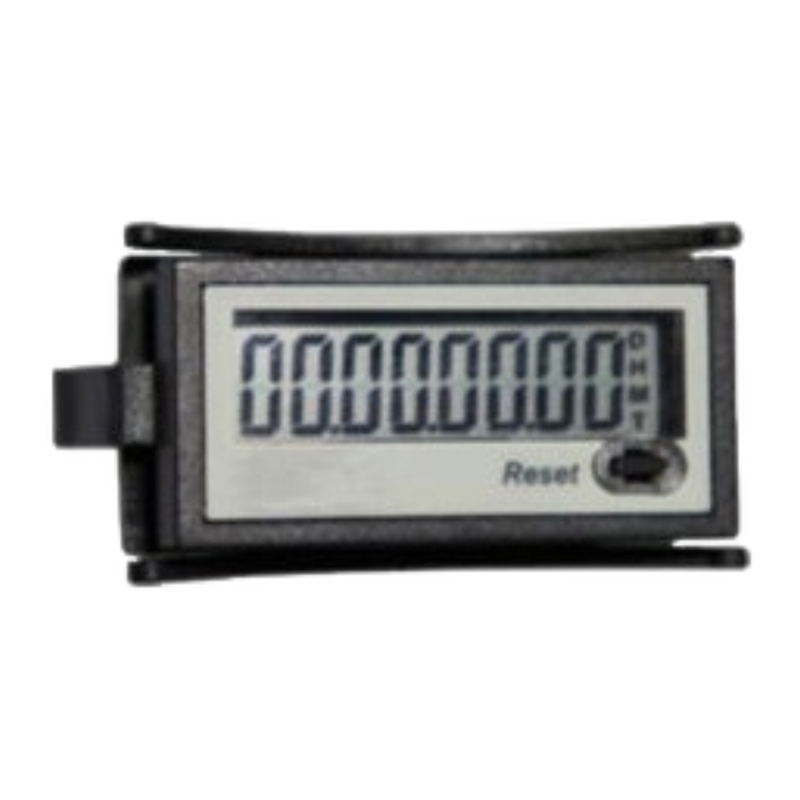

Timer/ Counter/ Tachometer
SKU: TC-PRO2400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
TC-PRO2400 Series:
8-digit high resolution LCD (8mm high)
Manual reset & external reset.
25 functions (15 timer functions, 10 counter functions, frequency meter and tachometer)
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Size: 48 x 24 x 45.7 (Unit: mm)
Timer range: 0-99999999
Counter range: 0-99999999.
Response frequency: 15Hz~5000Hz
RPM range: 150~300000 (unit: Round per minute)
Function: 25 Functions (15 Timer + 10 Counter + Frequency Meter + Tachometer)
Power supply: DC3V Batteries
Batteries life: > 2years
Operation temperature: -10°C ~ 55°C
Display Type: LCD
Screw Type: M3
Front panel waterproof protection: IP66
Rear panel waterproof protection: IP20
Vibration: IEC60068-2-6
Static Discharge: IEC1000-4-2 (4KV Air/ 2KV contact)
Electromagnetic field: IEC1000-4-3 (Field strength 10V/m, frequency 80MHz~1GMHz)
Shock pulse: IEC1000-4-4 (1KV input)
Weight: About 33g
Opening size: 45x22 (unit: MM)
