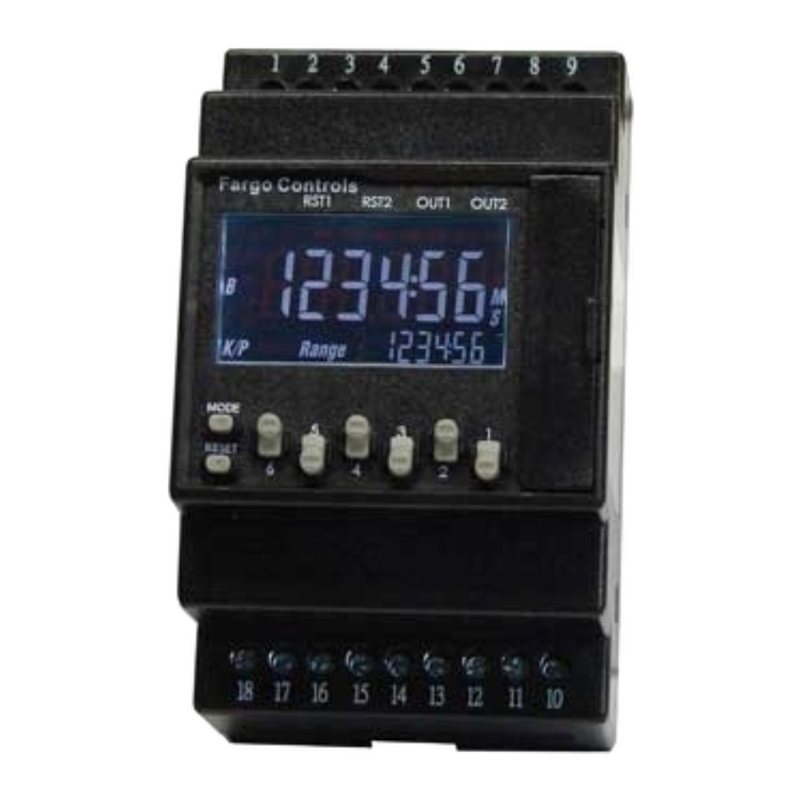

Timer/ Counter/ Tachometer VAC Din Rail Mounting
SKU: TC-PRO482CRA-D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
TC-PRO482 Series:
Highly visible display with backlit LCD
Conform to the key design of ergonomics.
Five key protection modes: KP-1~5
EEPROM (overwrites: 100,000 times min.)
12VDC external supply power
Applied to connect PC/HMI/PLC/DCS
Free PC software “TC-SOFT”
Support Modbus Protocol
Support RS-232/485/422.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Classification: Digital Timer/ Counter / Tachometer
Supported configurations: Timer, Dual Timer, 2-stage Timer, 1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer.
Operating voltage range: 100~240VAC (50/60Hz), 24VDC.
Installation: DIN rail or Flush mounting.
Max. counter speed: 30HZ or 5KHZ (10KHZ for Tachometer)
Timer mode: Elapsed time (UP), Remaining time (down) (Selectable)
Input method:
No-voltage input: ON impedance: 1kΩ max.
Voltage Input: High (logic level: 4.5~30 VDC Low (logic) level: 0~2VDC (Input resistance: approx. 4.7 kΩ)
Interface: RS-232/485/422
Control output:
Relay contact output: 5A at 150 VAC.
Transistor output: NPN open collector, ma. 100A at 20 VDC.
