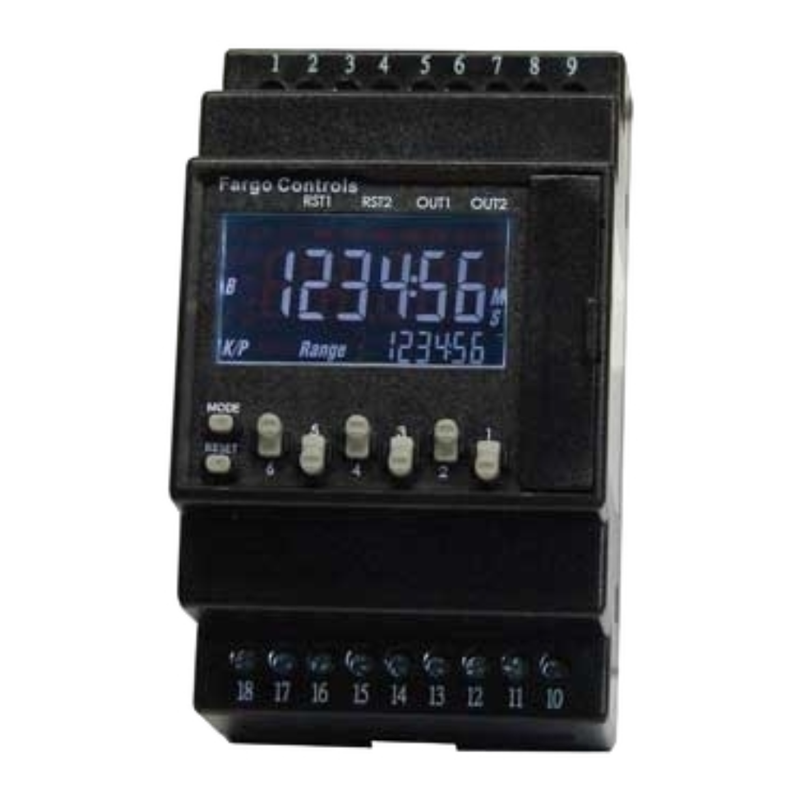

Timer/ Counter/ Tachometer VAC Flush Mounting TC-PRO483CRA-D
SKU: TC-PRO483CRA-D
Out of stock
Availability: Out of Stock
Short Description
TC-PRO483 Series:
- Highly visible display with backlit LCD
- Conform to the key design of ergonomics.
- Five key protection modes: KP-1~5
- EEPROM (overwrites: 100,000 times min.)
- 12VDC external supply power
- Applied to connect PC/HMI/PLC/DCS
- Free PC software “TC-SOFT”
- Support Modbus Protocol
- Support RS-232/485/422.
Specifications:
- Classification: Digital Timer/ Counter/ Tachometer
- Supported configurations: Timer, Dual Timer, 2-Stage Timer, 1-Stage counter, 2-Stage counter, total counter, batch counter, dual counter, twin counter, multi-mode, and tachometer.
- Operating voltage range: 100~240VAC (50/60HZ), 24 VDC.
- Installation: DIN rail or Flush mounting.
- Max. counter speed: 30HZ/ 1KHZ/ 5KHZ (10KHZ for Tachometer)
- Timer mode: Elapsed time (UP), Remaining time (down), (selectable)
- Interface: RS-232/485/422
Input Method:
- No-voltage input: ON impedance: 1kΩ max.
- Voltage Input: High (logic) level: 4.5~30 VDC Low (logic) level: 0~2 VDC (Input resistance: approximately 4.7 kΩ)
Control output:
- Relay contact output: 5A at 250 VAC.
- Transistor output: NPN open collector, max. 100mA at 30VDC.
