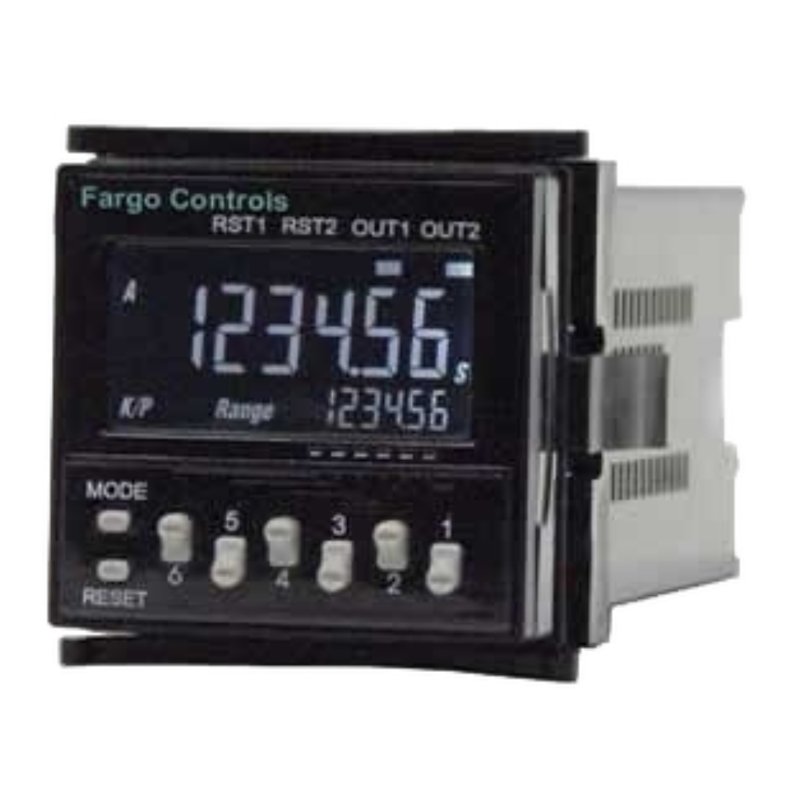

Timer/ Counter/ Tachometer VAC Flush Mounting
SKU: TC-PRO483CRA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
TC-PRO483 Series:
Highly visible display with backlit LCD
Conform to the key design of ergonomics.
Five key protection modes: KP-1~5
EEPROM (overwrites: 100,000 times min.)
12VDC external supply power
Applied to connect PC/HMI/PLC/DCS
Free PC software “TC-SOFT”
Support Modbus Protocol
Support RS-232/485/422.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Classification: Digital Timer/ Counter/ Tachometer
Supported configurations: Timer, Dual Timer, 2-Stage Timer, 1-Stage counter, 2-Stage counter, total counter, batch counter, dual counter, twin counter, multi-mode, and tachometer.
Operating voltage range: 100~240VAC (50/60HZ), 24 VDC.
Installation: DIN rail or Flush mounting.
Max. counter speed: 30HZ/ 1KHZ/ 5KHZ (10KHZ for Tachometer)
Timer mode: Elapsed time (UP), Remaining time (down), (selectable)
Interface: RS-232/485/422
Input Method:
No-voltage input: ON impedance: 1kΩ max.
Voltage Input: High (logic) level: 4.5~30 VDC Low (logic) level: 0~2 VDC (Input resistance: approximately 4.7 kΩ)
Control output:
Relay contact output: 5A at 250 VAC.
Transistor output: NPN open collector, max. 100mA at 30VDC.
