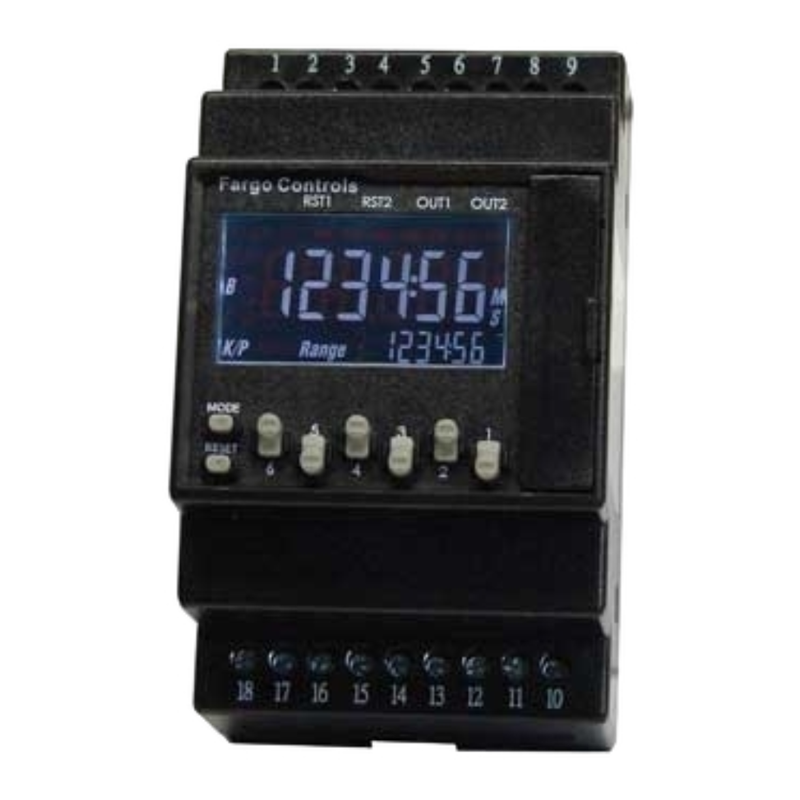

Timer/Counter/Tachometer VDC Din Rail Mounting
SKU: TC-PRO483CRD-D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
TC-PRO483 Series:
Highly visible display with backlit LCD
Conform to the key design of ergonomics
Five key protection modes: KP-1~5
EEPROM (overwrites: 100,000 times min.)
12VDC external supply power
Applied to connect PC/HMI/PLC/DCS
Free PC software, "TC-SOFT"
Support Modbus Protocol
Support RS-232/485/422
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Classification: Digital Timer/Counter/Tachometer
Supported configurations: timer, dual timer, 2-stage timer, 1-stage counter, 2-stage counter, total counter, batch counter, dual counter, twin counter, multi-mode, and tachometer
Operating voltage range: 100~240 VAC (50/60Hz), 24 VDC
Installation: DIN rail or flush mounting
Max. counter speed: 30 Hz/1 KHz/5 KHz (10 KHz for tachometer)
Interface: RS-232/485/422
Timer mode:
Elapsed time (UP)
Remaining time (down)
(Selectable)
Control ouptut:
Relay contact output: 5A at 250 VAC
Transistor output: NPN open collector, max. 100mA at 30 VDC
