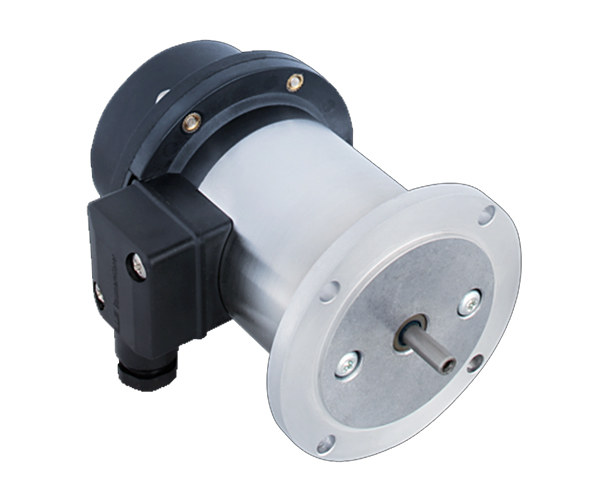

DC Tachogenerators, TDP009LT-7
SKU: TDP009LT-7
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DC Tachogenerator with Flange Mounting:
Long-life DC Tachogenerator with Flange Mounting (Dia. 85mm; PCD 75mm) and Solid Shaft (6h6 x 15mm); own bearings; Uo: 30VDC/1000rpm; IP 56.
Features:
Low response time.
Open-circuit voltage: 30 mV/rpm.
Flange mounting (diameter 85mm - PCD 75mm) with a solid shaft diameter of 6mm (standard shaft 6h6 x 15mm).
Very high shock resistance.
Patented Long-Life technology provides high signal quality.
Robust design.
Buy currently uses Select Automation shop pricing and checkout.
Technical information:
Approval: CE.
Output Voltage: 1000 rpm at 30 Vdc.
Type of Connection: Terminal Box.
Series: TDP0.09.
Weight: 1.1 kg.
Shaft type: Solid shaft driven.
Mounting type: Flange mounting (Dia. 85mm; PCD: 75mm).
Output Signal: Single.
