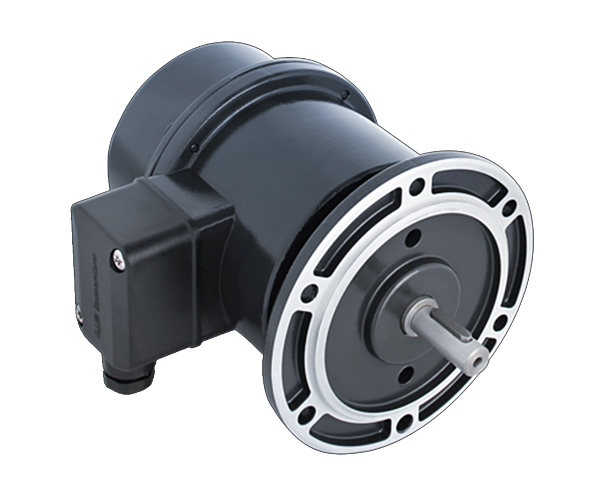

DC Tachogenerators with own bearings, TDP02LT-6
SKU: TDP02LT-6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid shaft with EURO flange B10 or housing foot B3:
Response time is low.
Open-circuit voltage ranges from 10 to 150 mV per rpm.
Redundant output (TDPZ).
Euro flange B10 or housing foot B3.
Very high shock resistance.
Patented long-life technology provides high signal quality.
Control allows for recognition of the notion of rotation.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
Open-circuit voltage U0 [mV/rpm]: 10.
Minimum load required depending on speed range [rpm]:
0-3000 RL [kΩ]: >0.1.
0-6000 RL [kΩ]: >0.3.
0-nmax RL [KΩ]: >0.9.
Maximum operating speed nmax [rpm]: 10000
Armature resistance RA (20°C) [Ω]: 3.
Armature inductance LA [mH]: 6.
