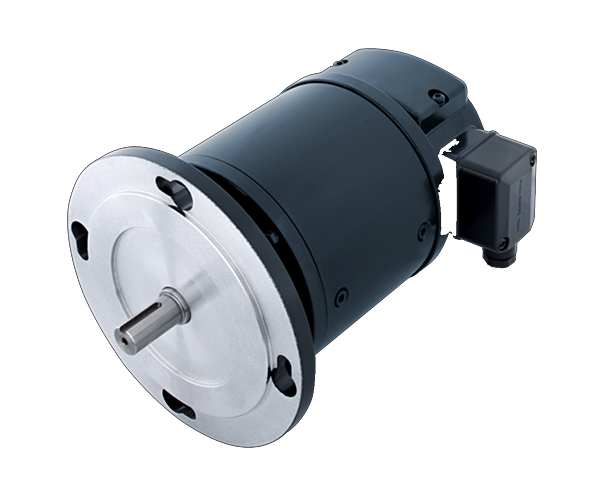

DC Tachogenerators, TDP13.06LT-17
SKU: TDP13.06LT-17
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid shaft ø14...18 mm with flange with own bearings:
Low response time.
Open-circuit voltage ranges from 20 to 200 mV per rpm.
Solid shaft ø14-18 mm with flange.
High signal quality due to patented Long-Life technology.
With own bearings.
No auxiliary energy source needed.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
Off-load voltage U0 [mV/rpm]: 65.
Minimum load required depending on speed range [rpm]:
0-1000 RL [kΩ]: >0.2
0-3000 RL [kΩ]: >0.9.
0-6000 RL [kΩ]: >4.
Maximum operating speed nmax [rpm]: 6000
Armature resistance RA (20°C) [Ω]: 21.
Armature inductance LA [mH]: 85.
