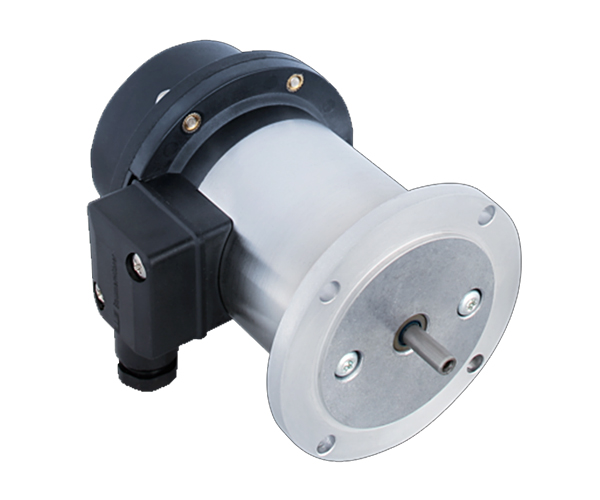

DC Tachogenerators, TDPZ009LT-3
SKU: TDPZ009LT-3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Product Overview:
Low response time.
Open-circuit voltage ranges from 10 to 60 mV per rpm.
Solid shaft ø6 mm with flange.
Very high resistance to shock.
High signal quality due to patented Long-Life technology.
Robust design.
Buy currently uses Select Automation shop pricing and checkout.
DC Tachogenerator with Flange Mounting:
Long-life DC Tachogenerator with Flange Mounting (Dia. 85mm; PCD 75mm) and Solid Shaft (6h6 x 15mm); own bearings; Uo: 20VDC/1000rpm; IP 56.
Features:
Low response time.
Open-circuit voltage: 20 mV/rpm.
Flange mounting (diameter 85mm - PCD 75mm) with a solid shaft diameter of 6mm (standard shaft 6h6 x 15mm).
Very high shock resistance.
Patented Long-Life technology provides high signal quality.
Robust design.
Technical data:
Off-load voltage U0 [mV/rpm]: 40.
Minimum load required depending on speed range [rpm]:
0-3000 RL [kΩ]: >48.
0-6000 RL [kΩ]: >192.
0-n max RL [kΩ]: >433.
Maximum operating speed nmax [rpm]: 9000.
Armature resistance RA (20°C) [Ω]: 698.
Armature inductance LA [mH]: 350.
