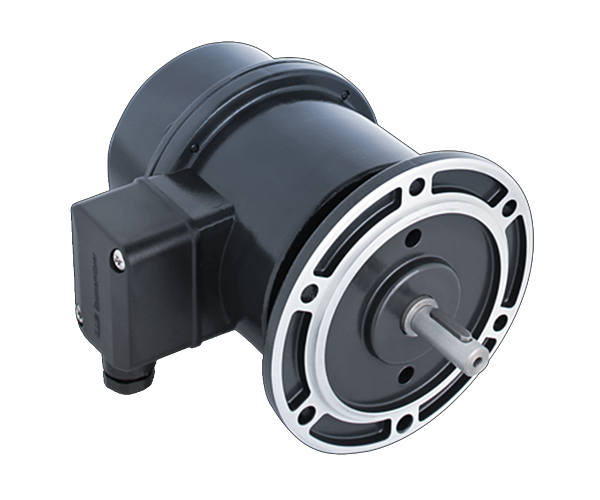

DC Twin Tachogenerators, TDPZ02LT-4
SKU: TDPZ02LT-4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid shaft with EURO flange B10:
Low response time.
Open-circuit voltage ranges from 10 to 150 mV per rpm.
Redundant output (TDPZ).
EURO flange B10, or housing foot B3.
Very high shock resistance.
Patented Long-Life technology provides high signal quality.
Control can be used to recognize the rotational sensation.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
Open-circuit voltage U0 [mV/rpm]: 60.
Minimum load required depending on speed range [rpm]:
0-3000 RL [kΩ]: >11.
0-6000 RL [kΩ]: >44.
0-n max RL [kΩ]: >120.
Maximum operating speed nmax [rpm]: 10000.
Armature resistance RA (20°C) [Ω]: 160.
Armature inductance LA [mH]: 390.
