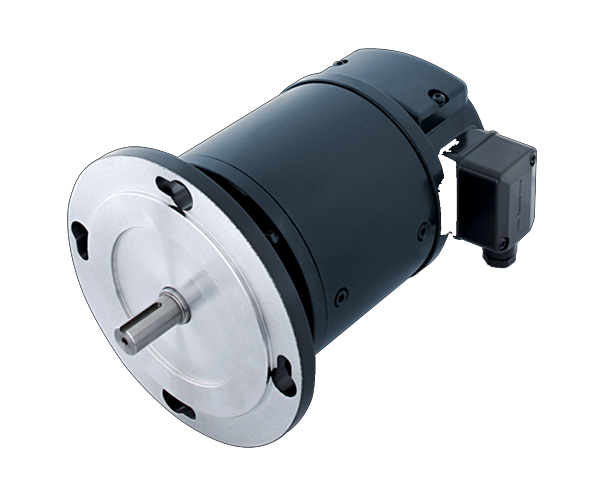

DC Twin Tachogenerators, 200 mV per rpm
SKU: TDPZ13.06LT-2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid shaft ø14...18 mm with flange with own bearings:
Response time is low.
Open-circuit voltage ranges from 20 to 200 mV per rpm.
Solid shaft ø14-18 mm with flange.
Patented Long-Life technology provides high signal quality.
With own bearings.
No extra energy source needed.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
Off-load voltage U0 [mV/rpm]: 200.
Minimum load required depending on speed range [rpm]:
0-1000 RL [kΩ]: >4.
0-3000 RL [kΩ]: >18.
Maximum operating speed nmax [rpm]: 3000.
Armature resistance RA (20°C) [Ω]: 328.
Armature inductance LA [mH]: 800.
