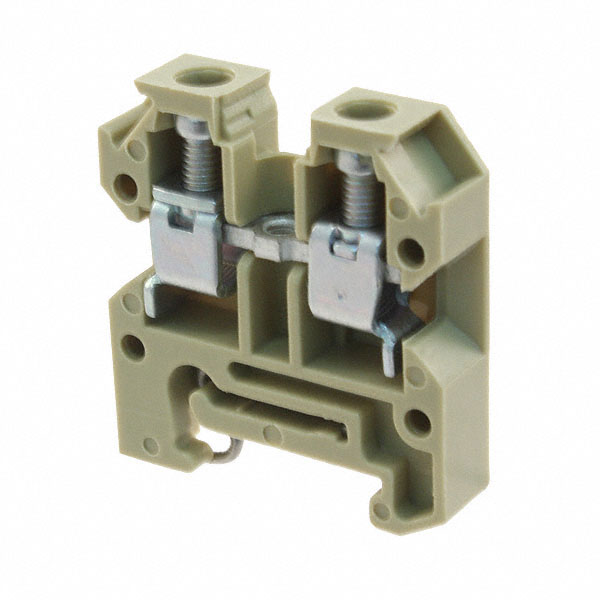

Terminal Block Connector 2 Position Feed Through Beige 12-24 AWG
SKU: TER-0011-H02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Terminal Block Connector 2 Position Feed Through Beige 12-24 AWG is a high-quality, dependable connector designed to provide secure and efficient electrical connections.
This terminal block is perfect for a variety of industrial applications due to its sturdy performance and ease of installation.Its beige colour and compact shape make it suited for a variety of settings, providing both usefulness and aesthetic appeal.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Feed Through.
Number of Positions: 2.
Number of Levels: 1.
Terminal Width: 6.1 mm.
Termination Style: Screw.
Current Rating (IEC): 32 A.
Voltage Rating (IEC): 400 V.
Current Rating (UL): 27 A.
Voltage Rating (UL): 300 V.
Wire Gauge Range: 12-24 AWG.
Wire Gauge Range (mm²): 0.5-6 mm².
Colour: Beige.
Material: Polyamide (PA66), Nylon 6/6.
Flammability Rating: UL94 V-2.
Stripping Length: 8 mm.
