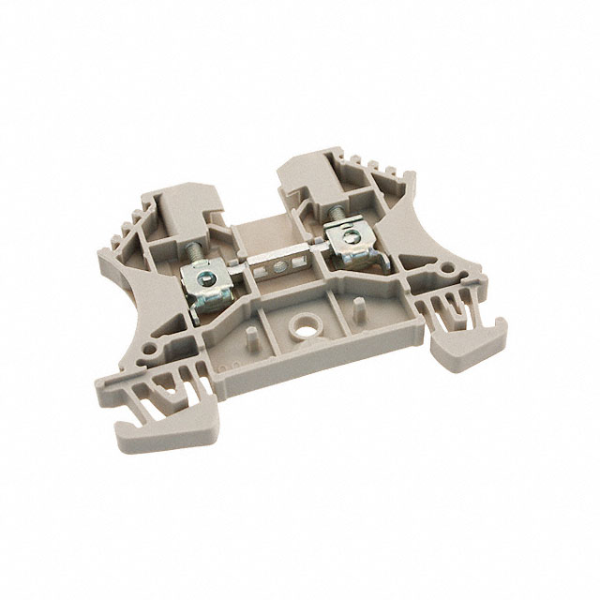

Terminal Block Connector WDU 2.5
SKU: TER-0015-H02
Sold by Select Automation
Final price R 13.05
R 11.35 excl. VAT
Availability: In Stock (78 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The WDU 2.5 is a feed-through terminal block that provides secure and dependable electrical connections in industrial applications.
It has a screw connection and comes in a dark beige tone.
The terminal block is composed of thermoplastic (Wemid) and has a flammability grade of V-0, ensuring safety in harsh settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Feed Through Terminal Block.
Number of Positions: 2.
Current Rating: 24 A.
Voltage Rating: 800 V.
Connection Method: Screw.
Colour: Dark Beige
Material: Thermoplastic (Wemid).
Flammability Rating: UL94 V-0.
Mounting Style: DIN Rail.
Wire Gauge Range: 30 AWG to 12 AWG.
Dimensions: 46.5 mm (Depth) x 5.1 mm (Width) x 60 mm (Height).
Operating Temperature Range: -60°C to +130°C.
