fuse terminal WK 4 / THSI5 U/V0
SKU: TER-0037-H02
Sold by Select Automation
Final price R 145.04
R 126.12 excl. VAT
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

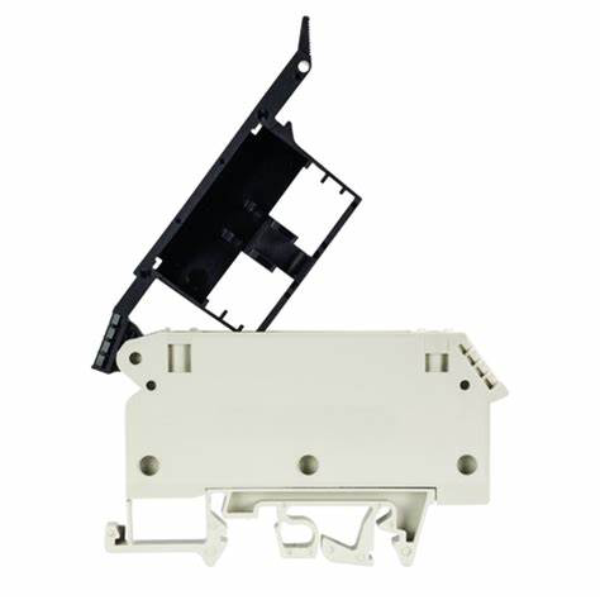

The WK 4 / THSI5 U/V0 fuse terminal block is intended for use in industrial applications that require secure and reliable electrical connections.
It has a screw connector and is available in grey.
The terminal block is composed of thermoplastic (Wemid) and has a flammability grade of V-0, ensuring safety in harsh conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Fuse Terminal Block.
Number of Positions: 2.
Current Rating: 24 A.
Voltage Rating: 500 V.
Connection Method: Screw.
Colour: Gray.
Material: Thermoplastic (Wemid).
Flammability Rating: UL94 V-0.
Mounting Style: DIN Rail.
Wire Gauge Range: 4 mm².
Dimensions: 48 mm (Depth) x 6 mm (Width) x 60 mm (Height).
Operating Temperature Range: -50°C to +120°C.
