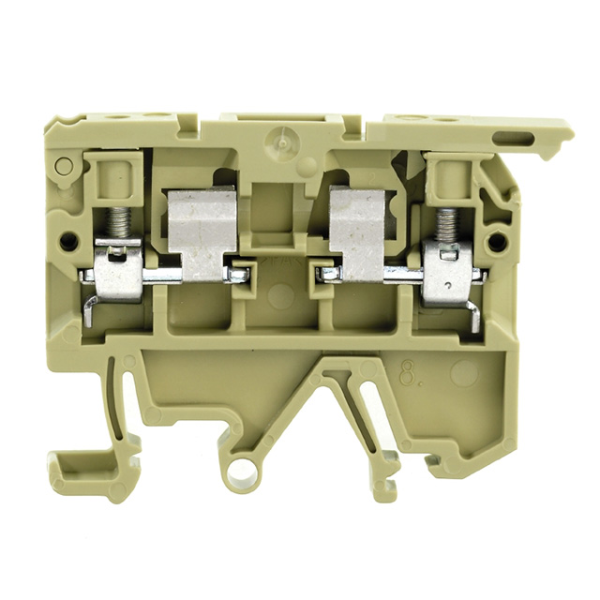

Fuse terminal ASK 1/EN LD 1D 500V 4mm 6.3A
SKU: TER-0042-H02
Sold by Select Automation
Final price R 16.10
R 14.00 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ASK 1/EN is a fuse terminal block intended for secure and dependable electrical connections in industrial applications.
It has a screw connector and comes in a beige/yellow hue.
The terminal block is composed of thermoplastic (Wemid) and has a flammability grade of V-0, ensuring safety in harsh conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Fuse Terminal Block.
Number of Positions: 2.
Current Rating: 6.3 A.
Voltage Rating: 500 V.
Connection Method: Screw.
Colour: Beige/Yellow.
Material: Thermoplastic (Wemid).
Flammability Rating: UL94 V-0.
Mounting Style: DIN Rail (TS 32, TS 35).
Wire Gauge Range: 4 mm².
Dimensions: 43 mm (Height) x 8.1 mm (Width) x 58 mm (Depth).
Operating Temperature Range: -50°C to +100°C.
