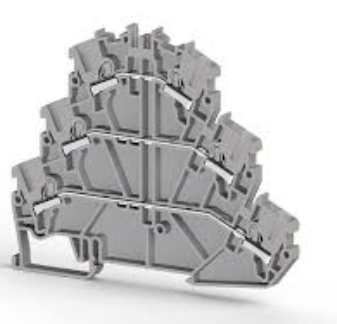

2,5mm2,push-in type,3 level,1 input 1 output terminal block with, Insulation material PA, Grey
SKU: TER-0043-H02
Sold by Select Automation
Final price R 139.15
R 121.00 excl. VAT
Availability: In Stock (24 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PYK 2,5-3F is a multi-level terminal block that provides secure and dependable electrical connections in industrial applications.
It has a push-in connection mechanism, which makes it simple to install and ensures a reliable connection.
The terminal block comprises three levels, one input and one output, and is insulated with polyamide (PA). It is grey in appearance and has a V-2 flammability rating, assuring safety in challenging conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Multi-Level Terminal Block.
Connection Type: Push-In.
Number of Levels: 3.
Number of Positions: 1 Input, 1 Output.
Insulation Material: Polyamide (PA).
Colour: Grey.
Flammability Rating: UL94 V-2.
Mounting Style: DIN Rail (MR 32, MR 35).
Wire Gauge Range: 0.5-4 mm² (22-12 AWG).
Dimensions: 98.7 mm (Length) x 5 mm (Width) x 83.1 mm (Height).
Operating Temperature Range: -55°C to +120°C.
Environmental Compliance: RoHS Compliant.
