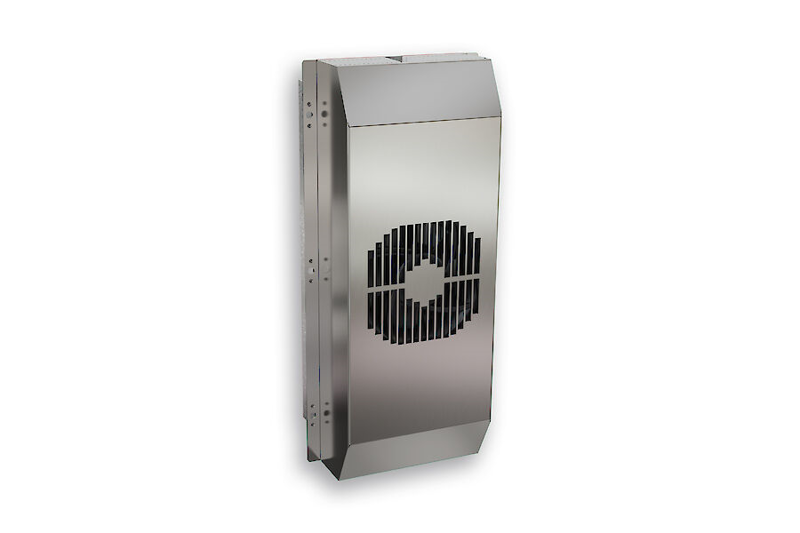

200W THERMO ELECTRIC UNIT 24VDC
SKU: TG 3200-24V
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A thermoelectric cooling device for effective heat control in electrical enclosures is the 200W THERMO ELECTRIC device TG 3200-24V.
It is essentially maintenance-free since it uses Peltier modules to deliver dependable cooling without the need for compressors or refrigerants.
This unit may be installed in a variety of ways and is appropriate for both indoor and outdoor settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: TG series.
Supply Voltage: 24V DC.
Cooling Power: 200 W / 680 BTU.
Mounting: DIN rail mounting, vertical or horizontal (except roof mounting).
Dimensions:
Height: 310 mm.
Width: 150 mm.
Depth: 150 mm.
Material: 304 Stainless Steel.
Ingress Protection: IP66.
Operating Temperature: -20°C to +65°C.
Connection Type: Terminal block for easy wiring.
Compliance:
CE.
cURus.
UKCA.
Features:
Ideal for control panels and enclosures made of stainless steel.
Operating without maintenance.
Adaptable mounting position (condensate management may need to be adjusted depending on the installation).
Compressor and refrigerant are not needed.
Rated Type 4X for extreme conditions.
By preserving a steady interior climate, this thermoelectric device is ideal for guaranteeing the dependability and lifespan of your electrical systems.
