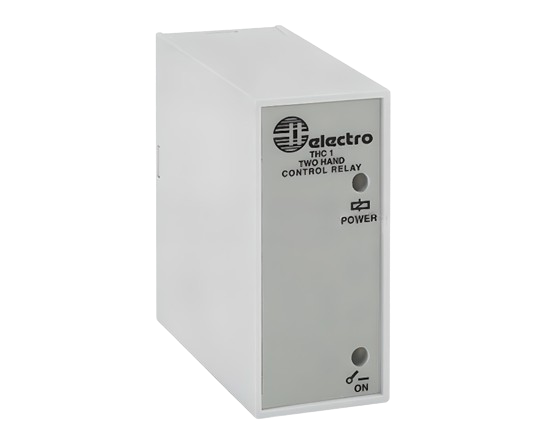

TWO HAND OPERATION MODULE 230VAC
SKU: THC1230A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Control with two hands (safety control):
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
The device is intended for devices that require two button presses from the operator to operate (two hand control).
There is a latch feature that may be used with a foot switch.
Buy currently uses Select Automation shop pricing and checkout.
Features:
10A SPDT output latch input for foot operation.
Powered on and relay activated LEDs.
Set time for both hands to be in control.
Two hand controls with two standard open inputs.
DESCRIPTION: Two hand controllers
CONTACT: 10A SPDT
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
