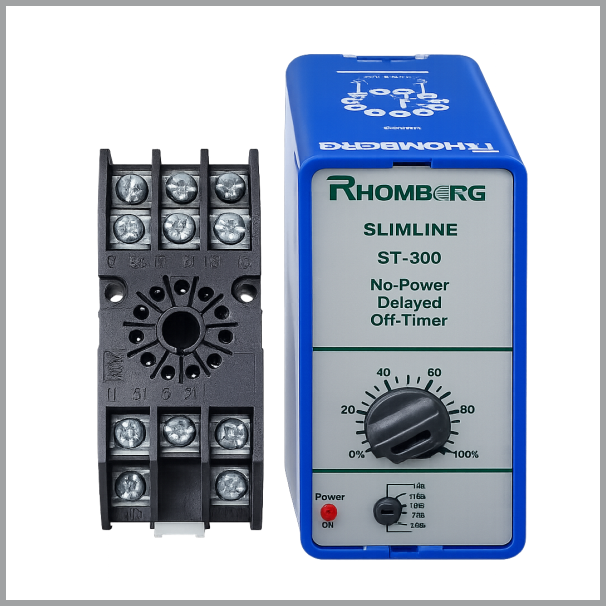

110VDC No-Power Delay-Off Timer 0-120s With 11-Pin Base
SKU: TIM-0004-G14
Incl. VAT R 1,149.29
R 999.38 excl. VAT
Availability: In Stock (1 on hand)
Short Description
- The ST-300/ST-301 are multi-range timers that provide delayed relay release after a power supply breakdown.
- The time delay is adjustable in six overlapping bands.
- When power is connected to the unit, the relay activates immediately, and the LED indicates that the power is on.
- While the power is on, an internal battery or capacitor is charged.
- When power quits
Specifications:
- Supply Voltage: 110V DC ±15%.
- Timing Range: 0.15–120 seconds.
- Timing Adjustment: 0–100% calibrated scale.
- Time Ranges: Six overlapping ranges.
- Relay Output: 10A Single Pole / 5A Dual Pole.
- Mounting: 11-pin plug-in base.
- Base Type: IP00 Rectangular Base.
- Power Consumption: 30mA (DC version).
- Timing Accuracy: High repetition accuracy.
