TempoLink kit for Temposonics R-Series V
SKU: TL-1-0-AD60
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

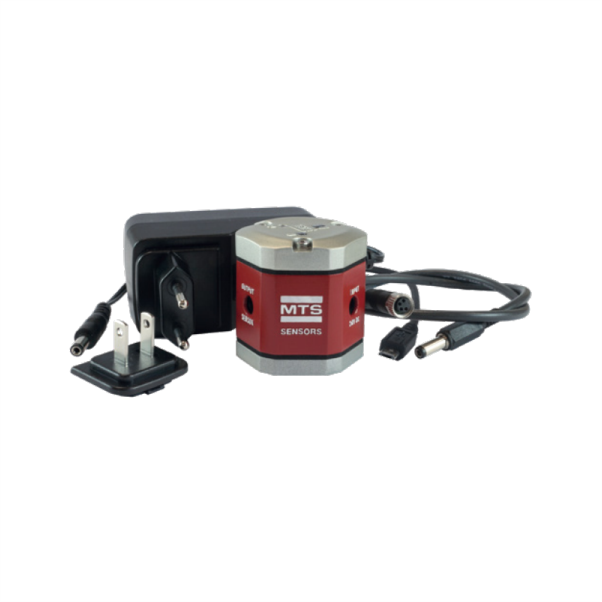

TempoLink® Kit for Temposonics® R-Series V.
Connect wirelessly using a Wi-Fi-enabled device or by using a USB with the diagnostic tool.
Simple connection to the sensor using a 24 VDC power line (maximum cable length: 30 meters).
User-friendly interface for mobile devices and desktop computers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measurement Range: Up to 5000 mm.
Output: Analog (0-10V, 10-0V, -10 to +10V, +10 to -10V).
Resolution: Up to 1 µm.
Linearity: ±0.01% full scale.
Repeatability: ±0.001% full scale.
Operating Temperature: -40°C to +85°C.
Protection Class: IP67.
Shock Resistance: 100 g (single shock), IEC standard 68-2-27.
Vibration Resistance: 15 g/10-2000 Hz, IEC standard 68-2-6.
Housing Material: Stainless steel.
Power Supply: 24V DC (±20%).
Connection: M12 connector or cable outlet.
