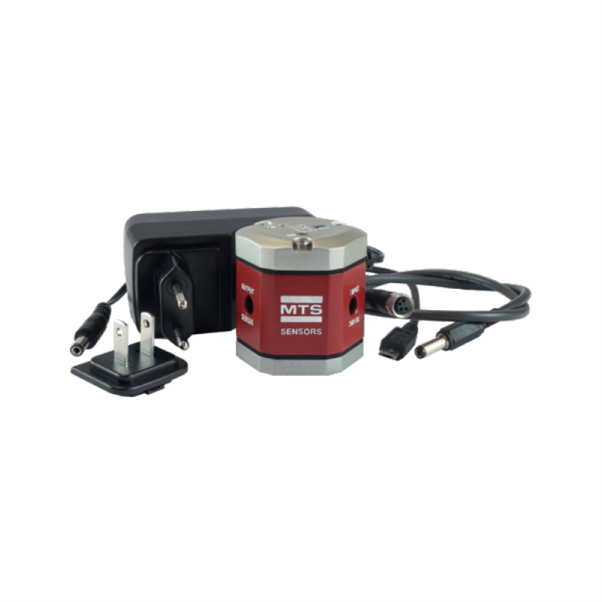

TempoLink kit for Temposonics, TL-1-0-EM12
SKU: TL-1-0-EM12
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
TempoLink Kit:
Connect wirelessly using a Wi-Fi-enabled device or by using a USB with the diagnostic tool.
Simple connection to the sensor using a 24 VDC power line (maximum cable length: 30 meters).
User-friendly interface for mobile devices and desktop computers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating Temperature: -20°C to +60°C (-4°F to +140°F).
Humidity: 10% to 90% relative humidity, non-condensing.
Ingress Protection: IP30.
Housing Material: ABS plastic.
Dimensions: 54mm (H) x 44mm (W) x 53mm (D).
Electrical Connection:
Micro USB.
Barrel connector 2.1 x 5.5 mm (female).
Barrel connector 2.5 x 5.5 mm (female).
Operating Voltage: +24 VDC.
Power Consumption: 15 W (when connecting an R-Series V sensor).
Wi-Fi Standard: IEEE 802.11b/g/n.
Frequency Range: 2.4 GHz (2.412 GHz to 2.472 GHz).
LED Indicators: 3 LEDs to indicate access point status.
Connection Options:
Wi-Fi.
USB.
Kit Contents:
TempoLink smart assistant.
Power supply options (plug-in power supply, cable for existing power supply).
Adapter cables for various connection types (D56, D34/D58, D60, D70, D84).
USB cable for optional connection to a computer.
