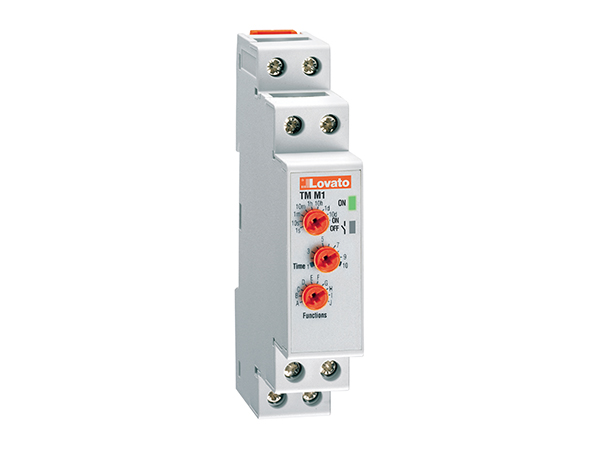

MODULAR TIMER - MULTI-FUNCTION

Functions: A - Delay-on (making relay switches after a predetermined amount of time). B - Interval (relay switches with a timed setting when turning on). C - Equivalent repeat, beginning at the off time. D - Equal repeat (beginning at the scheduled time). E - Relay activates when an external contact is closed. Timing starts when the doors open. F - Pulse regulated interval; time starts when the exterior contact closes. G - Pulse-controlled interval, whose timing starts when an external contact is opened. H - Delay in both the opening and shutting of external contacts. I - Step relay (relay that modifies its state each time an external contact closes). J - Uneven repeat OFF time configurable on time fixed at 0.5 seconds for the pulse generator. Specifications: SERIES: TM series SUPPLY: 12 - 240 VAC/DC DESCRIPTION: Multi-range, multi-voltage, multi-function timer CONTACT: 1 changeover MOUNTING: DIN rail mount MODULES WIDTH IN 17.5 MM: 1
