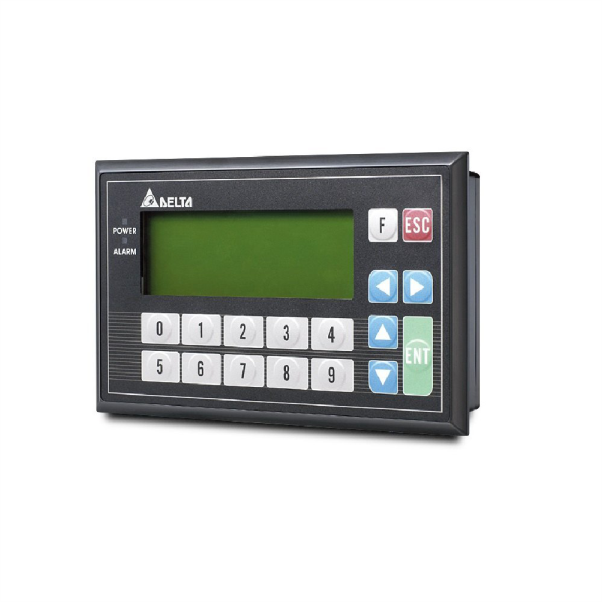

TEXT PANEL + PLC 8DI/8DO/4AI/2AO
SKU: TP04P-22XA1R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With eight digital inputs, eight digital outputs, four analog inputs, and two analog outputs, the TP04P-22XA1R is a combination text panel and PLC intended for industrial use.
This gadget is crucial for improving the overall performance and accuracy of your setup by giving operators and machines an easy-to-use interface.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 4.1 inches.
Display Type: Monochrome text and graphical panel.
Memory: 1M bytes Flash Memory.
Communication Ports: 2 x RS485.
Program Capacity: 8K steps / 5K words.
Built-in Real-Time Clock: Yes.
Digital Inputs: 8.
Digital Outputs: 8.
Analog Inputs: 4.
Analog Outputs: 2.
Built-in USB Port: For program upload/download.
Integrated PLC and TP: Adopts core of SS2 series PLC.
This combo text panel and PLC is perfect for applications requiring a straightforward and reliable interface.
