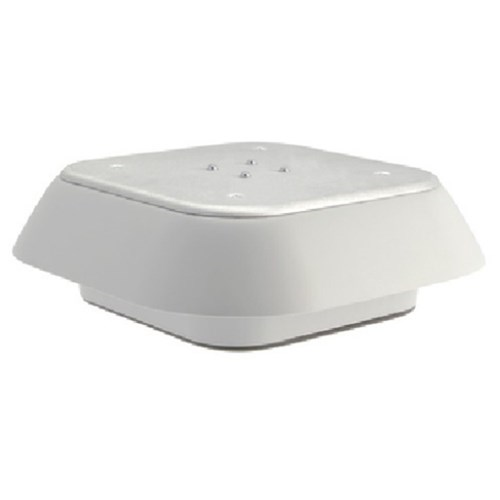

TP SERIES ROOF EXHAUST FAN IP24
SKU: TP19U230B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The TP series roof mount exhaust fan units:
Designed to remove heat directly from the upper section of the cabinet, thereby promoting efficient air circulation within.
Fitted with a radial high-head fan.
Features:
Polyurethane foam permanent sealing gasket; available in RAL 7035 colour; other colours upon request.
Small size: hood 62 mm, overall, 94 mm in height; plastic components made of PC/ABS alloy and aluminium self-extinguishing to UL 94V-0.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: TP series
VOLTAGE (V): 230 VAC.
POWER (W): 70
AIR FLOW (M³/H): 530
NOISE (dB/A): 68
DESCRIPTION: Roof exhaust fan
INDEX PROTECTION IP: IP24
MOUNTING: Via 8 x 4 mm screws
DIMENSIONS (MM): (H) 324 x (W) 324 x (D) 175
