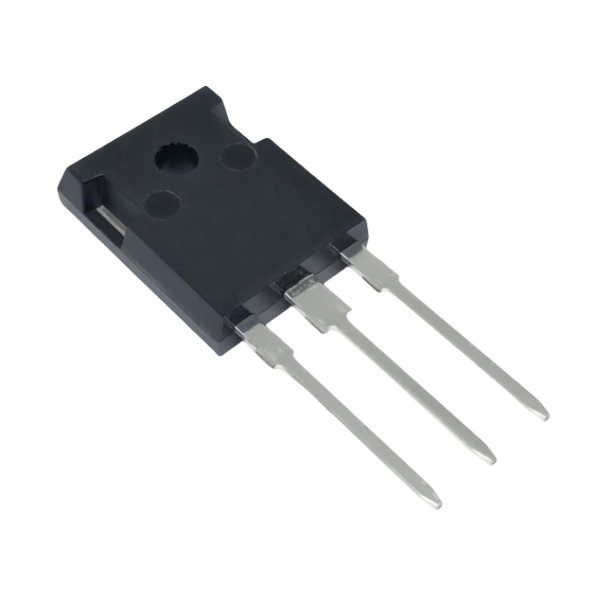

C3502 Transistor
SKU: TRA-0093-B11
Sold by Select Automation
Final price R 25.98
R 22.59 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The C3502 transistor, more formally known as 2SC3502, is a high-voltage NPN silicon transistor designed for video output and CRT display applications. It’s optimized for ultrahigh-definition signal amplification, offering excellent high-frequency characteristics and low reverse transfer capacitance. This makes it ideal for circuits requiring fast switching and stable performance under high voltage conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: NPN Silicon Transistor
Application: CRT video output, high-definition display drivers
Collector-Emitter Voltage (VCEO): ≥200V
Collector Current (IC): ~100mA (typical)
Power Dissipation (PD): ~1W (depending on package and cooling)
Transition Frequency (fT): ~100MHz
Reverse Transfer Capacitance (Cre): ~1.2pF
Package Type: TO-126F (flat plastic)
Complementary Pair: 2SA1380 (PNP)
Operating Temperature Range: –55°C to +150°C
