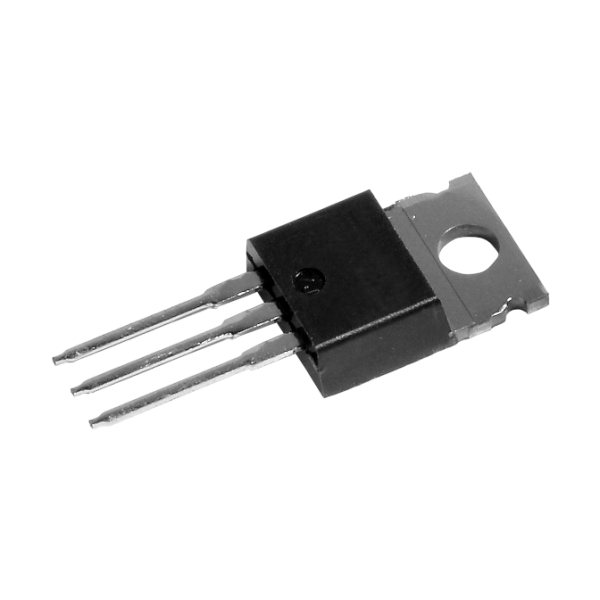

D864 Transistor
SKU: TRA-0096-B11
Sold by Select Automation
Final price R 18.95
R 16.48 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The D864 is a high-gain NPN silicon power transistor designed for medium-speed switching and power amplification. With a minimum DC current gain of 1000 and a collector-emitter breakdown voltage of 120 V, it’s well-suited for applications requiring efficient switching and amplification. It features a low saturation voltage, enhancing its performance in power circuits. The D864 is the NPN complement to the 2SB765 PNP transistor, making it ideal for complementary pair designs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: NPN Silicon Power Transistor
Package: TO-220
Collector-Emitter Breakdown Voltage (VCEO): ≥ 120 V
Collector-Base Voltage (VCBO): ≥ 120 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 1.5 A
DC Current Gain (hFE): ≥ 1000 @ IC = 1.5 A
Collector-Emitter Saturation Voltage (VCE(sat)): ≤ 1.5 V @ IC = 1.5 A
Complementary PNP: 2SB765
