BC636 Transistor
SKU: TRA-0097-B11
Sold by Select Automation
Final price R 7.06
R 6.14 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

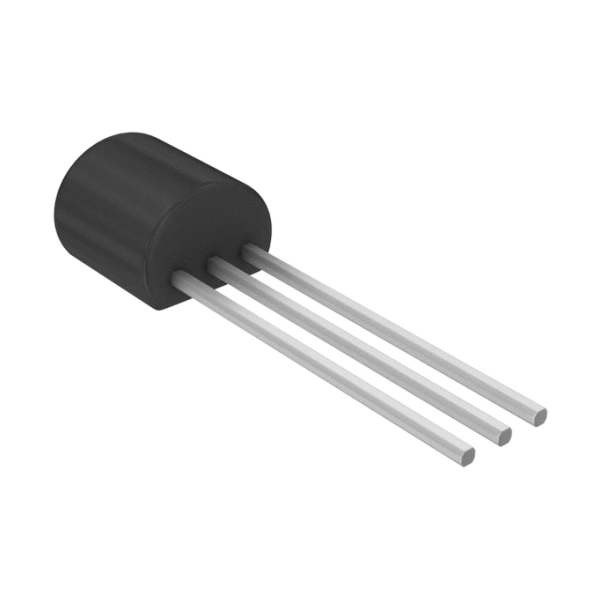

The BC636 is a PNP transistor housed in a TO-92 package, ideal for general-purpose amplification and switching. It’s the complement to the BC635 NPN transistor, making it useful in push-pull amplifier configurations or symmetrical switching circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: PNP epitaxial silicon transistor
Package: TO-92 (Case 135AR)
Polarity: PNP
Complementary NPN: BC635
Applications: General-purpose switching and amplification
Collector-Emitter Voltage (VCEO): −45 V
Collector-Base Voltage (VCBO): −60 V
Emitter-Base Voltage (VEBO): −5 V
Collector Current (IC): −1 A
Peak Collector Current (ICP): −1.5 A
Base Current (IB): −100 mA
DC Current Gain (hFE): 40 to 250 @ IC = −150 mA
Collector-Emitter Saturation Voltage (VCE(sat)): ≤ −0.5 V @ IC = −500 mA
Transition Frequency (fT): 100 MHz
Junction Temperature (TJ): 150 °C
