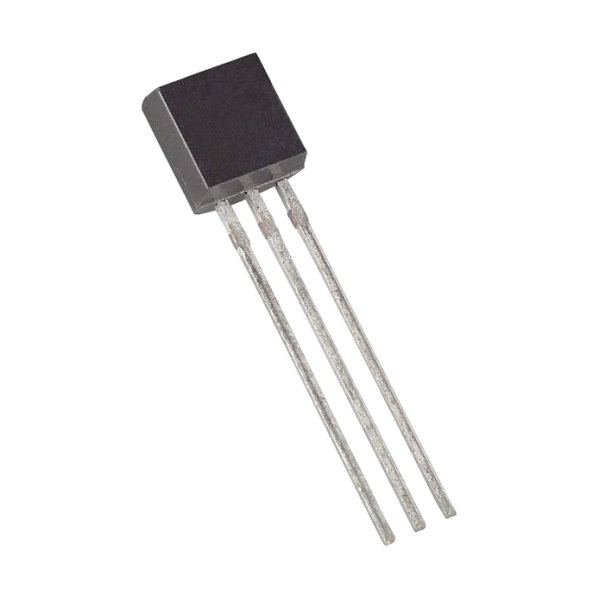

2N4125 Transistor
SKU: TRA-0098-B11
Sold by Select Automation
Final price R 4.07
R 3.54 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2N4125 is a PNP small-signal bipolar junction transistor housed in a TO-92 package. It’s designed for general-purpose amplification and switching, especially in low-power applications. With characteristics similar to the popular 2N3906, it’s a reliable choice for analog signal processing, audio circuits, and small load switching. Its high transition frequency also makes it suitable for RF circuits up to 200 MHz
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: PNP bipolar junction transistor
Package: TO-92 (plastic encapsulated)
Max Collector-Emitter Voltage (VCEO): −30 V
Max Collector-Base Voltage (VCBO): −30 V
Max Emitter-Base Voltage (VEBO): −4 V
Max Collector Current (IC): −200 mA
Max Power Dissipation (PC): 625 mW
DC Current Gain (hFE): 25 to 150
Transition Frequency (fT): 200 MHz
Noise Figure: ≤ 5.0 dB
Collector-Emitter Saturation Voltage (VCE(sat)): ~0.4 V
Operating Temperature Range: −55 °C to +150 °C
Equivalent/Alternatives: 2N4126, 2N3906, 2SB1059
